Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between HIMAWARI-9 and NOAA-21 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 3/4/2025
Index Date Time (HIMAWARI-9) HIMAWARI-9 Lat,Lon NOAA-21 Lat,Lon Distance(km) Time Diff (sec)
1 03/05/2025 04:04:22 -0.01, 140.77 -0.21, 139.92 96.24 80
2 03/06/2025 03:48:18 -0.01, 140.77 0.81, 144.45 419.90 80
3 03/07/2025 16:10:05 0.02, 140.76 0.36, 139.18 179.32 80
4 03/08/2025 15:48:40 0.02, 140.76 -0.66, 143.71 337.09 80
5 03/10/2025 04:10:37 -0.02, 140.76 -0.56, 138.41 268.22 80
6 03/11/2025 03:54:32 -0.02, 140.75 0.47, 142.94 249.03 80
7 03/12/2025 16:16:19 0.03, 140.72 0.68, 137.66 347.99 80
8 03/13/2025 15:54:54 0.02, 140.71 -0.29, 142.20 169.73 80
9 03/15/2025 04:19:31 -0.03, 140.70 -0.86, 136.89 433.86 80
10 03/16/2025 03:58:06 -0.02, 140.68 0.12, 141.43 84.48 80
11 03/18/2025 16:01:09 0.02, 140.62 -0.02, 140.68 7.83 80

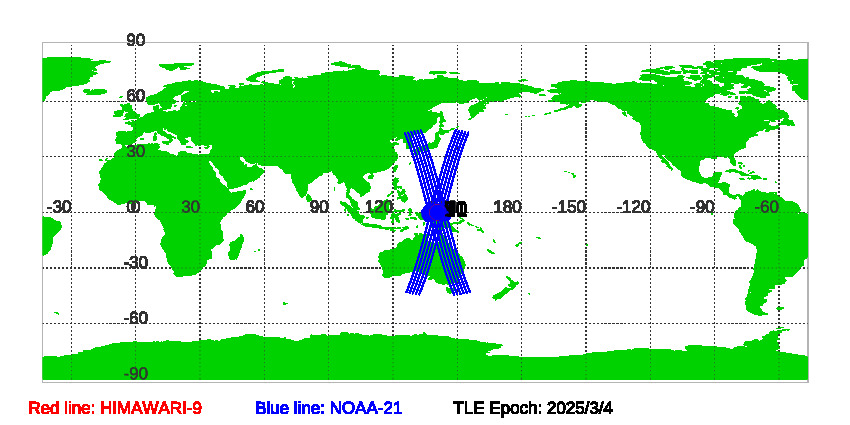

Figure of HIMAWARI-9 and NOAA-21 satellite orbits during SNOs since TLE Epoch: 3/4/2025

Download SNOs between HIMAWARI-9 and NOAA-21 since TLE EPOCH: 03/04/2025 in txt file.

Historical Predications of SNOs between HIMAWARI-9 and NOAA-21
