Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and METOP-B Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/4/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon METOP-B Lat,Lon Distance(km) Time Diff (sec)
1 05/04/2023 16:33:35 -0.01,-104.75 0.29,-106.21 165.29 80
2 05/05/2023 16:15:34 -0.01,-104.75 -0.80,-101.21 404.10 80
3 05/07/2023 04:34:33 0.01,-104.71 -0.22,-105.80 124.51 80
4 05/08/2023 04:11:13 0.00,-104.70 0.87,-100.80 444.41 80
5 05/09/2023 16:30:03 0.01,-104.74 0.14,-105.36 70.94 80
6 05/10/2023 16:12:03 0.01,-104.73 -0.95,-100.36 498.00 80
7 05/12/2023 04:31:02 -0.01,-104.68 -0.06,-104.96 30.88 80
8 05/14/2023 16:29:12 0.01,-104.72 -0.03,-104.52 22.78 80
9 05/17/2023 04:24:51 -0.01,-104.68 0.14,-104.12 64.37 80

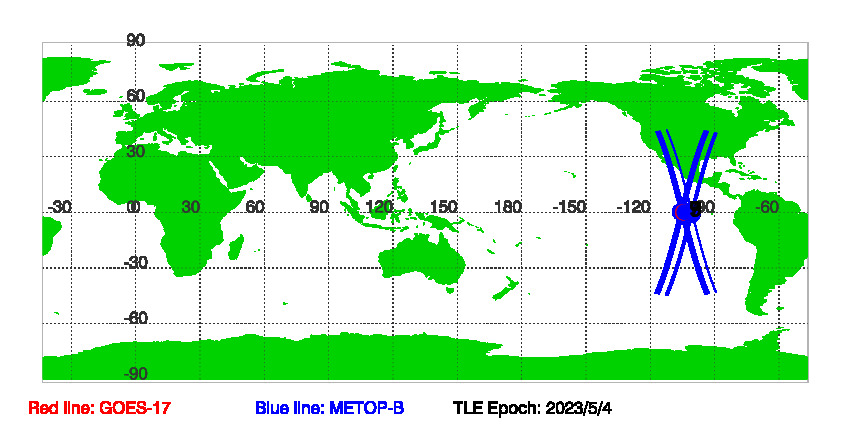

Figure of GOES-17 and METOP-B satellite orbits during SNOs since TLE Epoch: 5/4/2023

Download SNOs between GOES-17 and METOP-B since TLE EPOCH: 05/04/2023 in txt file.

Historical Predications of SNOs between GOES-17 and METOP-B
