Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and METOP-B Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/3/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon METOP-B Lat,Lon Distance(km) Time Diff (sec)
1 04/04/2023 04:14:46 0.01,-104.73 0.72,-101.61 356.76 80
2 04/05/2023 16:33:38 -0.01,-104.77 0.32,-106.17 160.11 80
3 04/06/2023 16:15:40 -0.01,-104.77 -0.81,-101.18 408.52 80
4 04/08/2023 04:34:40 0.01,-104.73 -0.25,-105.77 119.93 80
5 04/09/2023 04:11:22 0.01,-104.72 0.89,-100.79 448.40 80
6 04/10/2023 16:30:14 -0.00,-104.75 0.14,-105.35 69.09 80
7 04/11/2023 16:12:15 -0.00,-104.74 -1.01,-100.37 499.08 80
8 04/13/2023 04:31:16 -0.00,-104.70 -0.04,-104.96 30.01 80
9 04/15/2023 16:29:29 -0.00,-104.71 -0.04,-104.53 20.22 80

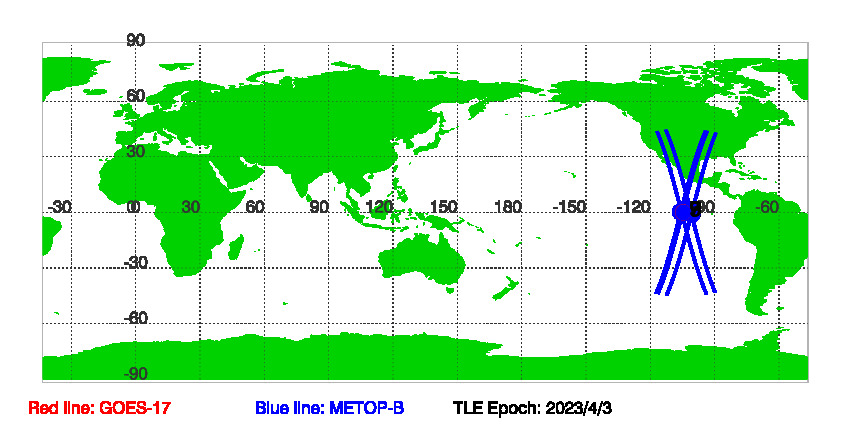

Figure of GOES-17 and METOP-B satellite orbits during SNOs since TLE Epoch: 4/3/2023

Download SNOs between GOES-17 and METOP-B since TLE EPOCH: 04/03/2023 in txt file.

Historical Predications of SNOs between GOES-17 and METOP-B
