Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and METOP-A Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/23/2021
Index Date Time (GOES-17) GOES-17 Lat,Lon METOP-A Lat,Lon Distance(km) Time Diff (sec)
1 08/25/2021 05:25:38 0.02,-137.20 -0.93,-141.58 498.32 80
2 08/26/2021 05:07:38 0.01,-137.20 0.16,-136.60 69.08 80
3 08/27/2021 17:23:48 -0.02,-137.21 0.87,-141.19 453.88 80
4 08/28/2021 17:05:48 -0.01,-137.21 -0.22,-136.21 113.19 80
5 08/30/2021 05:22:08 0.01,-137.20 -0.77,-140.86 416.61 80
6 08/31/2021 05:04:07 0.01,-137.19 0.31,-135.88 149.89 80
7 09/01/2021 17:20:18 -0.02,-137.18 0.72,-140.47 374.66 80
8 09/02/2021 17:02:17 -0.02,-137.17 -0.37,-135.49 191.33 80
9 09/04/2021 05:21:17 0.02,-137.15 -0.61,-140.14 339.81 80
10 09/05/2021 04:57:57 0.02,-137.13 0.48,-135.16 225.89 80
11 09/06/2021 17:16:47 -0.02,-137.12 0.56,-139.75 299.62 80

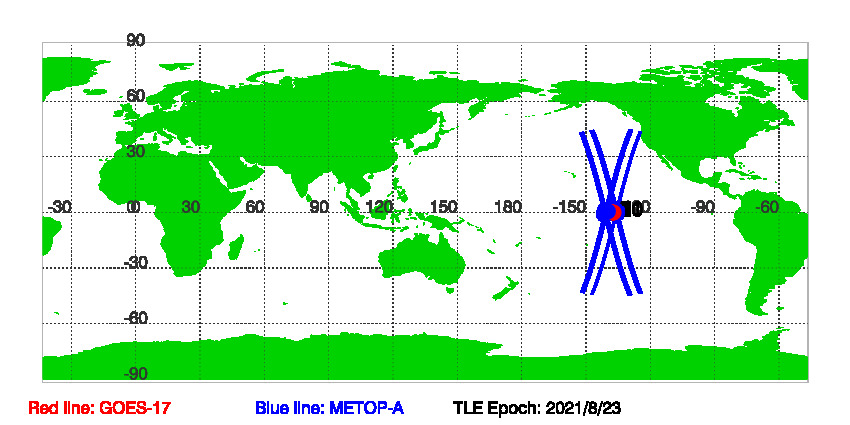

Figure of GOES-17 and METOP-A satellite orbits during SNOs since TLE Epoch: 8/23/2021

Download SNOs between GOES-17 and METOP-A since TLE EPOCH: 08/23/2021 in txt file.

Historical Predications of SNOs between GOES-17 and METOP-A
