Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and LANDSAT-8 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/2/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon LANDSAT-8 Lat,Lon Distance(km) Time Diff (sec)
1 04/03/2023 05:00:42 -0.00,-104.74 0.49,-102.56 248.59 80
2 04/03/2023 17:21:57 0.00,-104.78 0.60,-107.72 333.98 80
3 04/05/2023 17:12:23 0.00,-104.79 -0.02,-104.76 3.95 80
4 04/07/2023 17:00:08 0.00,-104.79 -0.60,-101.78 341.42 80
5 04/08/2023 05:21:32 -0.00,-104.76 -0.46,-106.98 252.03 80
6 04/10/2023 05:06:37 -0.01,-104.76 0.16,-104.01 85.25 80
7 04/10/2023 17:27:52 0.00,-104.79 0.91,-109.17 497.86 80
8 04/12/2023 04:54:22 0.02,-104.76 0.80,-101.05 421.69 80
9 04/12/2023 17:15:37 -0.02,-104.79 0.26,-106.21 161.42 80
10 04/14/2023 17:06:01 -0.03,-104.78 -0.36,-103.24 175.64 80
11 04/15/2023 05:27:24 0.03,-104.76 -0.74,-108.43 417.37 80

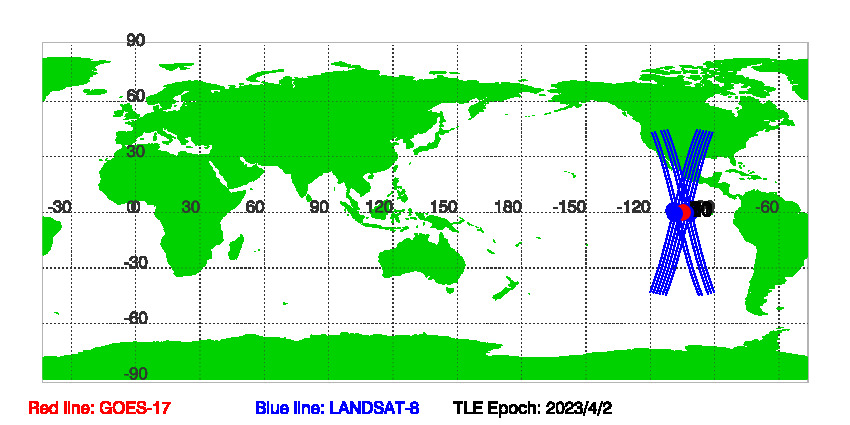

Figure of GOES-17 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 4/2/2023

Download SNOs between GOES-17 and LANDSAT-8 since TLE EPOCH: 04/02/2023 in txt file.

Historical Predications of SNOs between GOES-17 and LANDSAT-8
