Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and LANDSAT-8 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 1/20/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon LANDSAT-8 Lat,Lon Distance(km) Time Diff (sec)
1 01/20/2023 06:46:09 -0.00,-127.82 -0.19,-128.68 97.82 80
2 01/22/2023 06:33:51 -0.01,-125.50 -0.06,-125.63 15.60 80
3 01/24/2023 06:24:13 -0.02,-123.17 0.09,-122.58 67.28 80
4 01/26/2023 06:11:55 -0.02,-120.85 0.27,-119.53 150.25 80
5 01/26/2023 18:30:29 0.02,-120.27 0.93,-124.67 499.85 80
6 01/28/2023 05:59:36 -0.02,-118.53 0.42,-116.48 233.23 80
7 01/28/2023 18:18:10 0.02,-117.94 0.78,-121.61 416.93 80
8 01/30/2023 05:47:17 -0.02,-116.20 0.59,-113.42 316.02 80
9 01/30/2023 18:05:50 0.02,-115.61 0.66,-118.55 334.23 80
10 02/01/2023 05:34:57 -0.02,-113.87 0.73,-110.36 398.62 80
11 02/01/2023 17:53:30 0.02,-113.28 0.52,-115.49 251.67 80

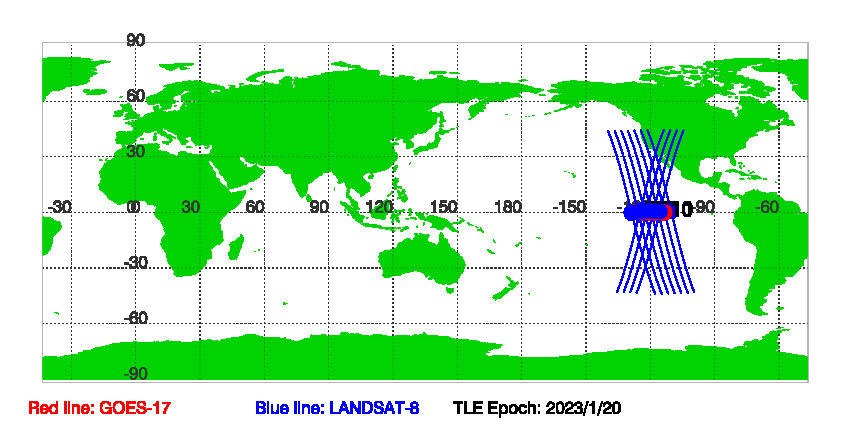

Figure of GOES-17 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 1/20/2023

Download SNOs between GOES-17 and LANDSAT-8 since TLE EPOCH: 01/20/2023 in txt file.

Historical Predications of SNOs between GOES-17 and LANDSAT-8
