Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and FY3D Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/23/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon FY3D Lat,Lon Distance(km) Time Diff (sec)
1 08/23/2023 21:16:47 0.00,-104.69 -0.50,-106.82 243.59 80
2 08/24/2023 21:01:04 0.00,-104.69 0.52,-102.37 265.15 80
3 08/26/2023 09:23:23 0.00,-104.73 0.66,-107.74 342.58 80
4 08/27/2023 09:02:19 0.01,-104.73 -0.30,-103.28 165.75 80
5 08/28/2023 21:24:47 -0.01,-104.70 -0.94,-108.68 454.59 80
6 08/29/2023 21:09:03 -0.02,-104.70 0.09,-104.23 54.02 80
7 09/01/2023 09:12:58 0.02,-104.75 0.12,-105.14 44.47 80
8 09/02/2023 08:51:55 0.02,-104.75 -0.91,-100.68 464.20 80
9 09/03/2023 21:14:23 -0.02,-104.72 -0.31,-106.09 155.64 80
10 09/04/2023 20:58:39 -0.02,-104.73 0.66,-101.62 353.32 80
11 09/06/2023 09:20:58 0.03,-104.77 0.51,-107.00 253.39 80

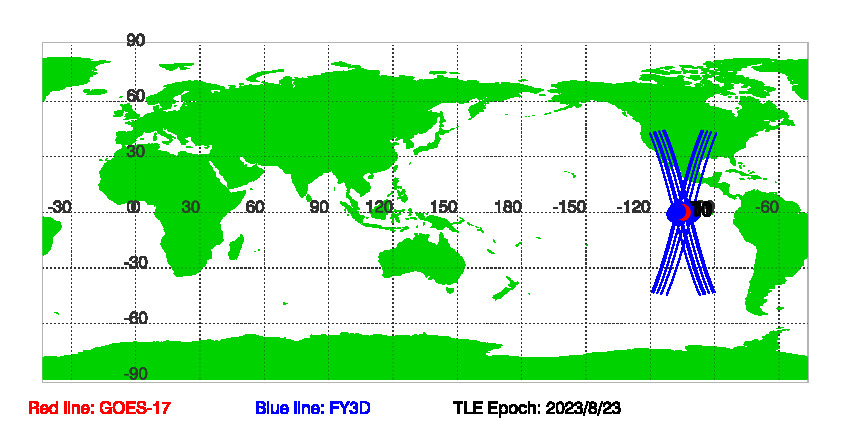

Figure of GOES-17 and FY3D satellite orbits during SNOs since TLE Epoch: 8/23/2023

Download SNOs between GOES-17 and FY3D since TLE EPOCH: 08/23/2023 in txt file.

Historical Predications of SNOs between GOES-17 and FY3D
