Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and FY3D Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/5/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon FY3D Lat,Lon Distance(km) Time Diff (sec)
1 08/05/2023 09:09:42 0.01,-104.73 0.03,-104.73 1.51 80
2 08/07/2023 21:11:08 -0.01,-104.70 -0.22,-105.69 112.32 80
3 08/08/2023 20:55:24 -0.01,-104.70 0.78,-101.23 395.93 80
4 08/10/2023 09:17:44 0.02,-104.73 0.45,-106.60 212.90 80
5 08/11/2023 08:56:40 0.02,-104.73 -0.55,-102.14 295.05 80
6 08/12/2023 21:19:09 -0.03,-104.70 -0.70,-107.54 325.30 80
7 08/13/2023 21:03:25 -0.03,-104.70 0.31,-103.09 183.05 80
8 08/15/2023 09:25:45 0.03,-104.74 0.85,-108.47 424.96 80
9 08/16/2023 09:04:42 0.03,-104.74 -0.16,-104.02 83.32 80
10 08/18/2023 21:08:47 -0.04,-104.71 -0.07,-104.97 28.51 80

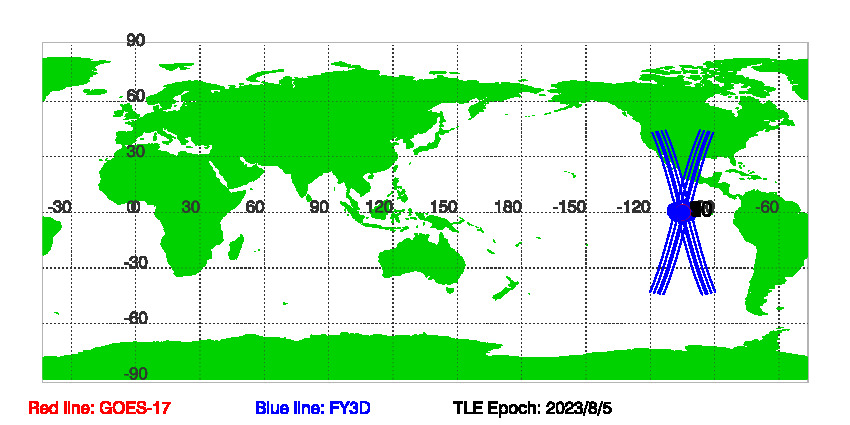

Figure of GOES-17 and FY3D satellite orbits during SNOs since TLE Epoch: 8/5/2023

Download SNOs between GOES-17 and FY3D since TLE EPOCH: 08/05/2023 in txt file.

Historical Predications of SNOs between GOES-17 and FY3D
