Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and FY3D Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/21/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon FY3D Lat,Lon Distance(km) Time Diff (sec)
1 05/21/2023 09:06:53 0.00,-104.73 0.07,-105.12 44.00 80
2 05/22/2023 08:45:48 -0.00,-104.72 -0.89,-100.65 463.79 80
3 05/23/2023 21:08:17 0.01,-104.71 -0.32,-106.06 154.19 80
4 05/24/2023 20:52:33 0.01,-104.71 0.71,-101.61 353.95 80
5 05/26/2023 09:14:53 -0.01,-104.72 0.49,-106.98 257.14 80
6 05/27/2023 08:53:49 -0.02,-104.72 -0.54,-102.53 250.94 80
7 05/28/2023 21:16:16 0.02,-104.71 -0.71,-107.93 366.87 80
8 05/29/2023 21:00:33 0.02,-104.71 0.32,-103.48 141.65 80
9 05/31/2023 09:22:51 -0.02,-104.73 0.94,-108.84 468.70 80
10 06/01/2023 09:01:48 -0.02,-104.73 -0.10,-104.38 39.38 80
11 06/03/2023 21:05:52 0.03,-104.71 -0.09,-105.34 71.18 80

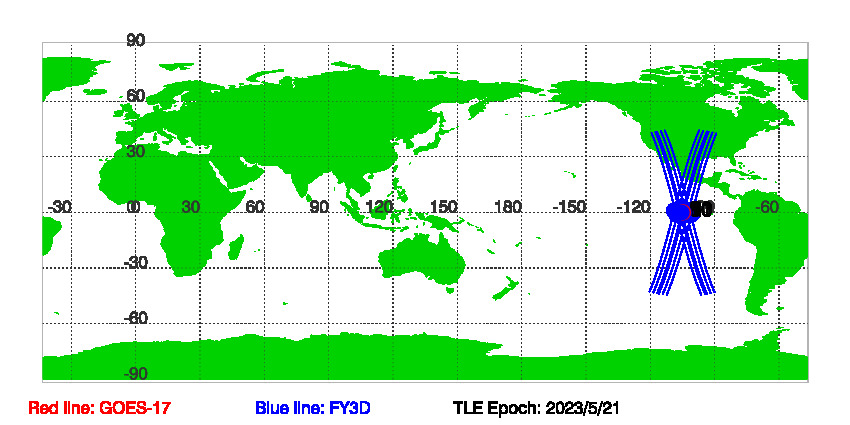

Figure of GOES-17 and FY3D satellite orbits during SNOs since TLE Epoch: 5/21/2023

Download SNOs between GOES-17 and FY3D since TLE EPOCH: 05/21/2023 in txt file.

Historical Predications of SNOs between GOES-17 and FY3D
