Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-17 and FY3D Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 1/22/2023
| Index | Date | Time (GOES-17) | GOES-17 Lat,Lon | FY3D Lat,Lon | Distance(km) | Time Diff (sec) |
| 1 | 01/22/2023 | 10:31:28 | 0.02,-125.31 | 0.71,-128.41 | 353.06 | 80 |
| 2 | 01/23/2023 | 10:15:44 | 0.02,-124.15 | -0.03,-123.91 | 27.84 | 80 |
| 3 | 01/24/2023 | 09:57:19 | 0.01,-123.00 | -0.77,-119.41 | 408.94 | 80 |
| 4 | 01/25/2023 | 22:17:07 | -0.01,-121.24 | -0.83,-124.76 | 401.21 | 80 |
| 5 | 01/26/2023 | 21:58:42 | -0.01,-120.09 | -0.08,-120.26 | 20.15 | 80 |
| 6 | 01/27/2023 | 21:42:59 | -0.01,-118.93 | 0.73,-115.77 | 361.04 | 80 |
| 7 | 01/29/2023 | 10:02:37 | 0.02,-117.15 | 0.88,-121.08 | 447.12 | 80 |
| 8 | 01/30/2023 | 09:44:12 | 0.02,-116.00 | 0.12,-116.58 | 66.19 | 80 |
| 9 | 01/31/2023 | 09:28:28 | 0.02,-114.84 | -0.63,-112.09 | 314.57 | 80 |
| 10 | 02/01/2023 | 21:48:14 | -0.02,-113.07 | -0.99,-117.43 | 496.12 | 80 |
| 11 | 02/02/2023 | 21:29:50 | -0.02,-111.92 | -0.22,-112.93 | 115.28 | 80 |
| 12 | 02/03/2023 | 21:14:04 | -0.02,-110.76 | 0.48,-108.42 | 265.40 | 80 |

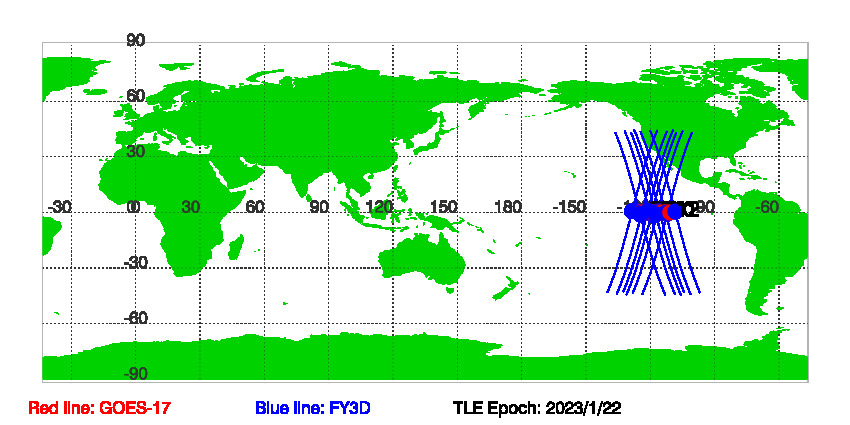

Figure of GOES-17 and FY3D satellite orbits during SNOs since TLE Epoch: 1/22/2023
Download SNOs between GOES-17 and FY3D since TLE EPOCH: 01/22/2023 in txt file.
Historical Predications of SNOs between GOES-17 and FY3D
