Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/1/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon AQUA Lat,Lon Distance(km) Time Diff (sec)
1 06/02/2023 20:33:39 0.00,-104.72 0.81,-100.93 430.47 80
2 06/03/2023 08:54:25 -0.00,-104.73 0.23,-105.97 140.71 80
3 06/05/2023 08:37:42 0.00,-104.72 -0.48,-102.54 248.59 80
4 06/05/2023 20:58:36 -0.00,-104.70 -0.60,-107.60 329.43 80
5 06/07/2023 20:47:11 -0.00,-104.69 0.09,-104.16 59.95 80
6 06/09/2023 20:33:07 -0.00,-104.68 0.87,-100.73 449.73 80
7 06/10/2023 08:53:53 0.00,-104.70 0.22,-105.76 120.63 80
8 06/12/2023 08:37:08 0.00,-104.70 -0.53,-102.33 269.84 80
9 06/12/2023 20:58:02 -0.00,-104.68 -0.58,-107.39 308.38 80
10 06/14/2023 20:46:36 -0.01,-104.67 0.14,-103.94 82.66 80

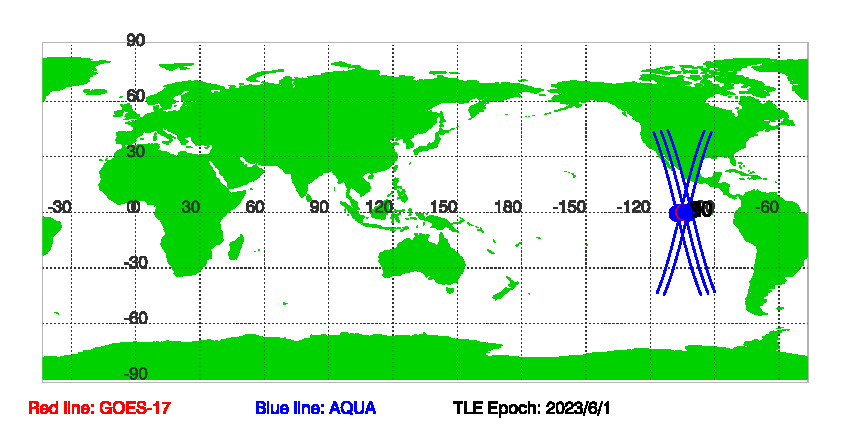

Figure of GOES-17 and AQUA satellite orbits during SNOs since TLE Epoch: 6/1/2023

Download SNOs between GOES-17 and AQUA since TLE EPOCH: 06/01/2023 in txt file.

Historical Predications of SNOs between GOES-17 and AQUA
