Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-17 and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 3/20/2023
Index Date Time (GOES-17) GOES-17 Lat,Lon AQUA Lat,Lon Distance(km) Time Diff (sec)
1 03/20/2023 08:35:48 0.02,-104.74 -0.40,-102.83 217.47 80
2 03/20/2023 20:56:50 -0.02,-104.75 -0.71,-107.92 360.97 80
3 03/22/2023 20:45:53 -0.02,-104.76 0.00,-104.60 16.97 80
4 03/24/2023 20:32:15 -0.02,-104.76 0.71,-101.28 395.48 80
5 03/25/2023 08:53:08 0.02,-104.75 0.35,-106.34 180.63 80
6 03/27/2023 08:36:49 0.00,-104.75 -0.36,-103.01 197.55 80
7 03/27/2023 20:57:51 -0.00,-104.76 -0.70,-108.11 381.04 80
8 03/29/2023 20:46:51 -0.00,-104.76 0.02,-104.78 3.36 80
9 03/31/2023 20:33:10 -0.01,-104.76 0.73,-101.45 377.97 80
10 04/01/2023 08:54:02 0.01,-104.76 0.36,-106.50 197.39 80

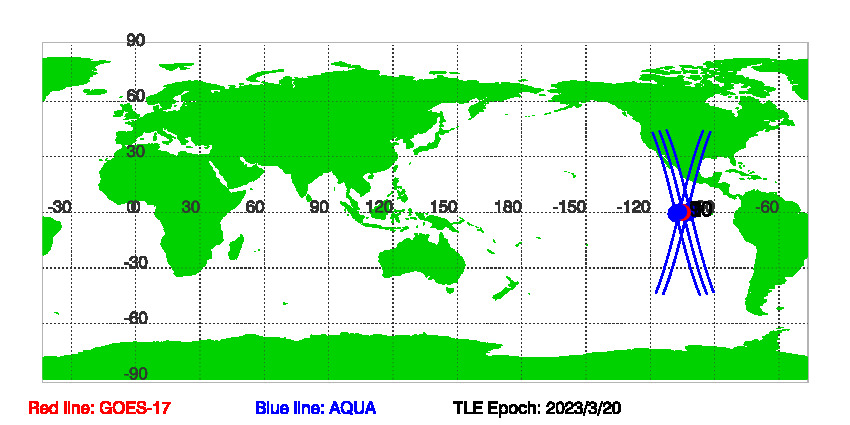

Figure of GOES-17 and AQUA satellite orbits during SNOs since TLE Epoch: 3/20/2023

Download SNOs between GOES-17 and AQUA since TLE EPOCH: 03/20/2023 in txt file.

Historical Predications of SNOs between GOES-17 and AQUA
