Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/14/2025
Index Date Time (GOES-16) GOES-16 Lat,Lon TERRA Lat,Lon Distance(km) Time Diff (sec)
1 10/15/2025 03:52:02 -0.06,-104.66 0.80,-100.43 480.25 80
2 10/15/2025 16:11:27 0.06,-104.72 0.15,-105.16 49.88 80
3 10/17/2025 15:54:42 0.06,-104.72 -0.84,-100.49 481.83 80
4 10/18/2025 04:14:13 -0.06,-104.67 -0.18,-105.23 64.56 80
5 10/20/2025 03:52:07 -0.07,-104.67 0.78,-100.55 467.59 80
6 10/20/2025 16:11:32 0.07,-104.73 0.17,-105.28 62.50 80
7 10/22/2025 15:54:46 0.07,-104.74 -0.82,-100.61 469.96 80
8 10/23/2025 04:14:17 -0.07,-104.68 -0.19,-105.35 76.19 80
9 10/25/2025 03:52:10 -0.08,-104.68 0.76,-100.67 456.02 80
10 10/25/2025 16:11:33 0.08,-104.74 0.24,-105.39 74.42 80
11 10/27/2025 15:54:47 0.09,-104.74 -0.74,-100.70 457.95 80
12 10/28/2025 04:14:17 -0.09,-104.68 -0.25,-105.45 87.93 80

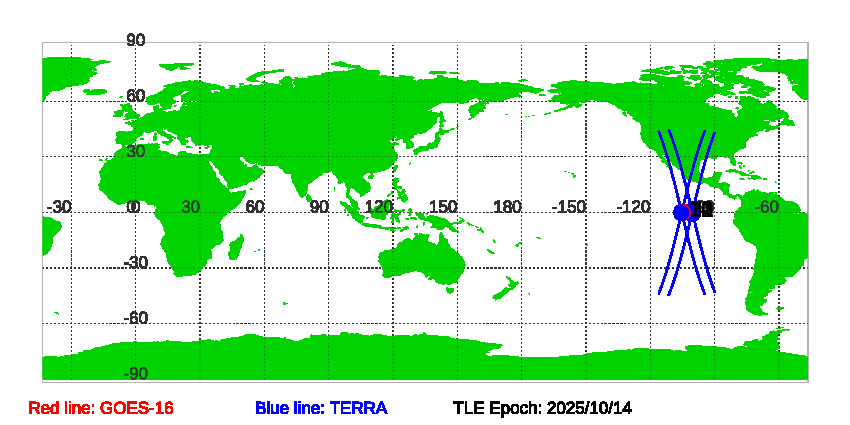

Figure of GOES-16 and TERRA satellite orbits during SNOs since TLE Epoch: 10/14/2025

Download SNOs between GOES-16 and TERRA since TLE EPOCH: 10/14/2025 in txt file.

Historical Predications of SNOs between GOES-16 and TERRA
