Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/8/2025
Index Date Time (GOES-16) GOES-16 Lat,Lon TERRA Lat,Lon Distance(km) Time Diff (sec)
1 07/10/2025 04:02:57 -0.02,-104.70 0.69,-101.16 402.04 80
2 07/10/2025 16:22:25 0.02,-104.73 0.29,-105.90 133.64 80
3 07/12/2025 16:03:15 0.01,-104.72 -0.73,-101.29 390.66 80
4 07/13/2025 04:25:30 -0.00,-104.70 -0.30,-106.05 154.14 80
5 07/15/2025 04:03:39 0.02,-104.69 0.68,-101.43 370.16 80
6 07/15/2025 16:23:07 -0.02,-104.72 0.29,-106.17 165.34 80
7 07/17/2025 16:06:36 -0.02,-104.72 -0.70,-101.55 359.73 80
8 07/18/2025 04:26:11 0.02,-104.69 -0.33,-106.32 184.93 80
9 07/20/2025 04:04:19 -0.01,-104.68 0.61,-101.69 340.23 80
10 07/20/2025 16:23:46 0.01,-104.71 0.35,-106.43 195.46 80
11 07/22/2025 16:07:14 0.00,-104.70 -0.61,-101.80 328.80 80

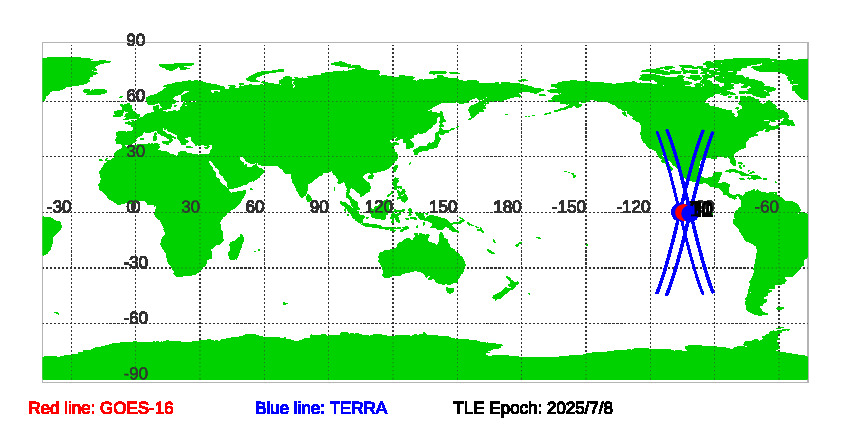

Figure of GOES-16 and TERRA satellite orbits during SNOs since TLE Epoch: 7/8/2025

Download SNOs between GOES-16 and TERRA since TLE EPOCH: 07/08/2025 in txt file.

Historical Predications of SNOs between GOES-16 and TERRA
