Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/16/2022
Index Date Time (GOES-16) GOES-16 Lat,Lon TERRA Lat,Lon Distance(km) Time Diff (sec)
1 10/16/2022 15:01:24 -0.07, -75.21 -0.85, -71.55 416.13 80
2 10/17/2022 03:22:21 0.07, -75.19 -0.20, -76.64 164.46 80
3 10/19/2022 03:05:42 0.07, -75.20 0.46, -73.26 220.35 80
4 10/19/2022 15:26:30 -0.06, -75.22 0.60, -78.31 350.99 80
5 10/21/2022 15:15:11 -0.06, -75.24 -0.10, -74.93 34.99 80
6 10/23/2022 14:58:33 -0.06, -75.27 -0.86, -71.57 421.31 80
7 10/24/2022 03:22:10 0.06, -75.25 -0.21, -76.65 158.81 80
8 10/26/2022 03:05:31 0.06, -75.28 0.51, -73.28 228.12 80
9 10/26/2022 15:26:18 -0.06, -75.31 0.57, -78.32 342.62 80
10 10/28/2022 15:14:58 -0.05, -75.33 -0.11, -74.94 44.60 80

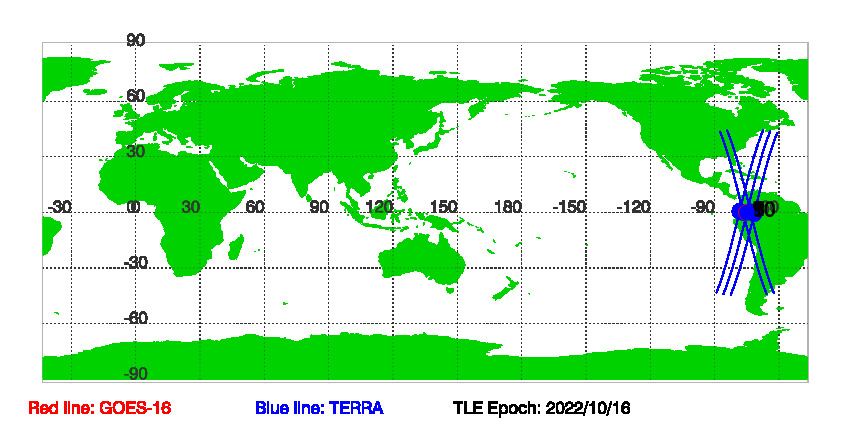

Figure of GOES-16 and TERRA satellite orbits during SNOs since TLE Epoch: 10/16/2022

Download SNOs between GOES-16 and TERRA since TLE EPOCH: 10/16/2022 in txt file.

Historical Predications of SNOs between GOES-16 and TERRA
