Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-16 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 1/6/2021
| Index | Date | Time (GOES-16) | GOES-16 Lat,Lon | TERRA Lat,Lon | Distance(km) | Time Diff (sec) |
| 1 | 01/07/2021 | 15:13:57 | 0.02, -75.20 | -0.93, -70.82 | 497.64 | 80 |
| 2 | 01/08/2021 | 03:35:20 | -0.01, -75.17 | -0.18, -76.02 | 95.49 | 80 |
| 3 | 01/10/2021 | 03:20:28 | 0.01, -75.18 | 0.46, -73.06 | 240.47 | 80 |
| 4 | 01/10/2021 | 15:41:44 | -0.01, -75.20 | 0.60, -78.23 | 343.23 | 80 |
| 5 | 01/12/2021 | 15:29:31 | -0.01, -75.21 | 0.02, -75.26 | 6.48 | 80 |
| 6 | 01/14/2021 | 15:19:59 | -0.00, -75.22 | -0.62, -72.30 | 331.87 | 80 |
| 7 | 01/15/2021 | 03:41:23 | 0.00, -75.21 | -0.49, -77.50 | 260.35 | 80 |
| 8 | 01/17/2021 | 03:26:31 | -0.00, -75.23 | 0.16, -74.54 | 78.88 | 80 |
| 9 | 01/19/2021 | 03:14:18 | -0.01, -75.27 | 0.74, -71.58 | 418.90 | 80 |
| 10 | 01/19/2021 | 15:35:34 | 0.01, -75.30 | 0.31, -76.74 | 164.14 | 80 |

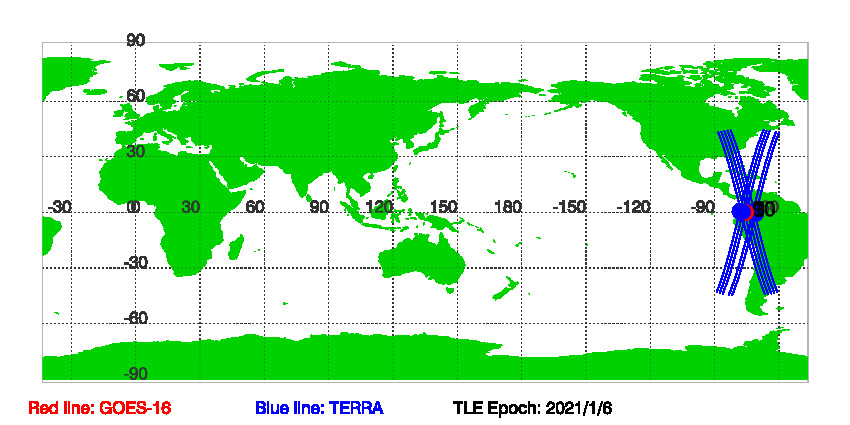

Figure of GOES-16 and TERRA satellite orbits during SNOs since TLE Epoch: 1/6/2021
Download SNOs between GOES-16 and TERRA since TLE EPOCH: 01/06/2021 in txt file.
Historical Predications of SNOs between GOES-16 and TERRA
