Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-16 and NOAA-21 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/2/2024
| Index | Date | Time (GOES-16) | GOES-16 Lat,Lon | NOAA-21 Lat,Lon | Distance(km) | Time Diff (sec) |
| 1 | 09/03/2024 | 18:10:47 | -0.06, -75.20 | 0.89, -71.13 | 465.01 | 80 |
| 2 | 09/05/2024 | 06:29:53 | 0.05, -75.20 | 0.29, -76.39 | 134.70 | 80 |
| 3 | 09/06/2024 | 06:13:47 | 0.05, -75.20 | -0.68, -71.84 | 382.74 | 80 |
| 4 | 09/07/2024 | 18:33:01 | -0.05, -75.21 | -0.49, -77.13 | 219.59 | 80 |
| 5 | 09/08/2024 | 18:16:56 | -0.05, -75.21 | 0.55, -72.60 | 298.03 | 80 |
| 6 | 09/10/2024 | 06:36:01 | 0.05, -75.22 | 0.66, -77.85 | 300.99 | 80 |
| 7 | 09/11/2024 | 06:19:56 | 0.05, -75.22 | -0.39, -73.32 | 216.67 | 80 |
| 8 | 09/12/2024 | 18:39:09 | -0.04, -75.23 | -0.82, -78.60 | 385.40 | 80 |
| 9 | 09/13/2024 | 18:23:03 | -0.03, -75.23 | 0.24, -74.07 | 132.47 | 80 |
| 10 | 09/15/2024 | 06:42:09 | 0.02, -75.24 | 0.95, -79.33 | 465.86 | 80 |
| 11 | 09/16/2024 | 06:26:02 | 0.02, -75.25 | -0.06, -74.78 | 52.54 | 80 |

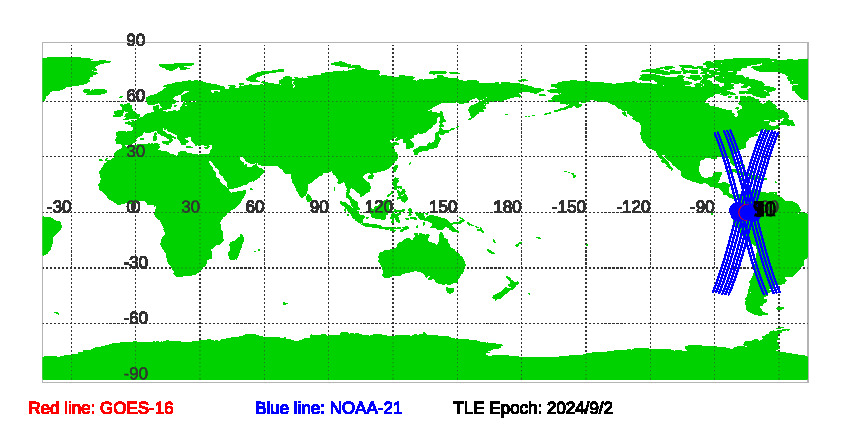

Figure of GOES-16 and NOAA-21 satellite orbits during SNOs since TLE Epoch: 9/2/2024
Download SNOs between GOES-16 and NOAA-21 since TLE EPOCH: 09/02/2024 in txt file.
