Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-16 and METOP-C Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/14/2021
Index | Date | Time (GOES-16) | GOES-16 Lat,Lon | METOP-C Lat,Lon | Distance(km) | Time Diff (sec) |
1 | 12/14/2021 | 02:36:59 | 0.04, -75.20 | 0.00, -76.09 | 98.83 | 80 |
2 | 12/15/2021 | 02:13:38 | 0.05, -75.21 | 0.98, -71.07 | 472.74 | 80 |
3 | 12/16/2021 | 14:35:10 | -0.04, -75.25 | 0.04, -75.63 | 42.79 | 80 |
4 | 12/19/2021 | 02:30:51 | 0.04, -75.26 | 0.06, -75.23 | 4.42 | 80 |
5 | 12/21/2021 | 14:29:04 | -0.03, -75.32 | -0.15, -74.79 | 59.94 | 80 |
6 | 12/23/2021 | 02:50:44 | 0.03, -75.32 | -0.86, -79.39 | 462.81 | 80 |
7 | 12/24/2021 | 02:27:25 | 0.02, -75.34 | 0.24, -74.39 | 108.32 | 80 |
8 | 12/25/2021 | 14:46:17 | -0.02, -75.39 | 0.75, -78.95 | 405.73 | 80 |
9 | 12/26/2021 | 14:28:17 | -0.02, -75.41 | -0.36, -73.96 | 165.91 | 80 |

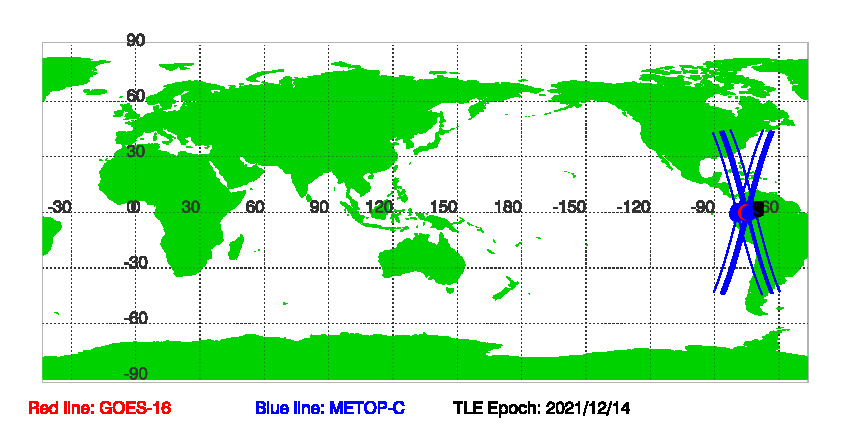

Figure of GOES-16 and METOP-C satellite orbits during SNOs since TLE Epoch: 12/14/2021
Download SNOs between GOES-16 and METOP-C since TLE EPOCH: 12/14/2021 in txt file.
Historical Predications of SNOs between GOES-16 and METOP-C
