Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-16 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/12/2025
| Index | Date | Time (GOES-16) | GOES-16 Lat,Lon | LANDSAT-8 Lat,Lon | Distance(km) | Time Diff (sec) |
| 1 | 11/13/2025 | 17:06:49 | 0.05,-104.70 | -0.28,-103.27 | 163.31 | 80 |
| 2 | 11/14/2025 | 05:28:12 | -0.04,-104.66 | -0.86,-108.45 | 431.78 | 80 |
| 3 | 11/16/2025 | 05:15:59 | -0.04,-104.66 | -0.19,-105.49 | 94.00 | 80 |
| 4 | 11/18/2025 | 05:01:04 | -0.04,-104.67 | 0.38,-102.51 | 244.02 | 80 |
| 5 | 11/18/2025 | 17:22:20 | 0.04,-104.71 | 0.64,-107.68 | 337.28 | 80 |
| 6 | 11/20/2025 | 17:12:45 | 0.04,-104.71 | 0.03,-104.71 | 1.25 | 80 |
| 7 | 11/22/2025 | 17:00:30 | 0.05,-104.71 | -0.61,-101.74 | 339.02 | 80 |
| 8 | 11/23/2025 | 05:21:53 | -0.04,-104.68 | -0.50,-106.92 | 255.20 | 80 |
| 9 | 11/25/2025 | 05:06:57 | -0.05,-104.67 | 0.12,-103.95 | 83.13 | 80 |
| 10 | 11/25/2025 | 17:28:11 | 0.05,-104.71 | 1.01,-109.09 | 499.06 | 80 |

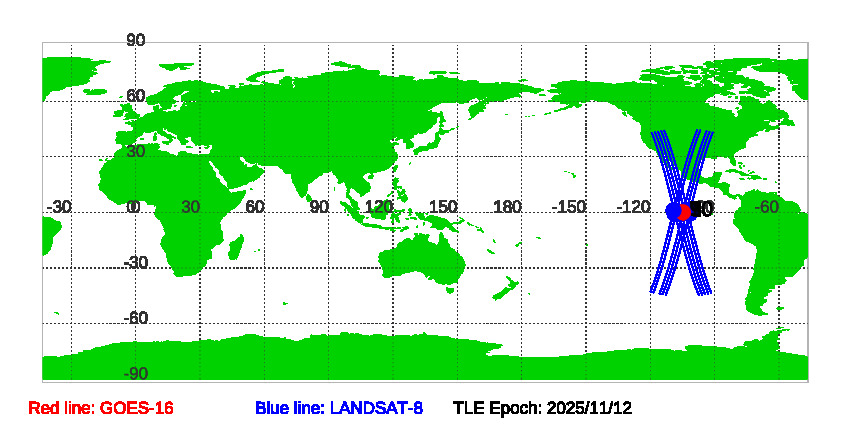

Figure of GOES-16 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 11/12/2025
Download SNOs between GOES-16 and LANDSAT-8 since TLE EPOCH: 11/12/2025 in txt file.
Historical Predications of SNOs between GOES-16 and LANDSAT-8
