Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-16 and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/20/2025
| Index | Date | Time (GOES-16) | GOES-16 Lat,Lon | LANDSAT-8 Lat,Lon | Distance(km) | Time Diff (sec) |
| 1 | 05/21/2025 | 04:44:17 | -0.06, -96.13 | -0.40, -97.75 | 184.38 | 80 |
| 2 | 05/23/2025 | 04:29:31 | -0.06, -97.18 | 0.44, -94.84 | 265.97 | 80 |
| 3 | 05/23/2025 | 16:53:27 | 0.05, -97.49 | 0.58,-100.02 | 287.19 | 80 |
| 4 | 05/25/2025 | 16:38:39 | 0.05, -98.53 | -0.22, -97.09 | 163.13 | 80 |
| 5 | 05/26/2025 | 05:02:45 | -0.05, -98.77 | -0.78,-102.31 | 401.29 | 80 |
| 6 | 05/28/2025 | 04:47:57 | -0.05, -99.82 | 0.03, -99.39 | 48.69 | 80 |
| 7 | 05/30/2025 | 04:35:50 | -0.04,-100.86 | 0.92, -96.48 | 498.91 | 80 |
| 8 | 05/30/2025 | 16:59:46 | 0.04,-101.17 | 0.15,-101.64 | 54.23 | 80 |
| 9 | 06/01/2025 | 16:44:58 | 0.03,-102.22 | -0.68, -98.73 | 396.80 | 80 |
| 10 | 06/02/2025 | 05:09:03 | -0.03,-102.46 | -0.37,-103.93 | 167.14 | 80 |

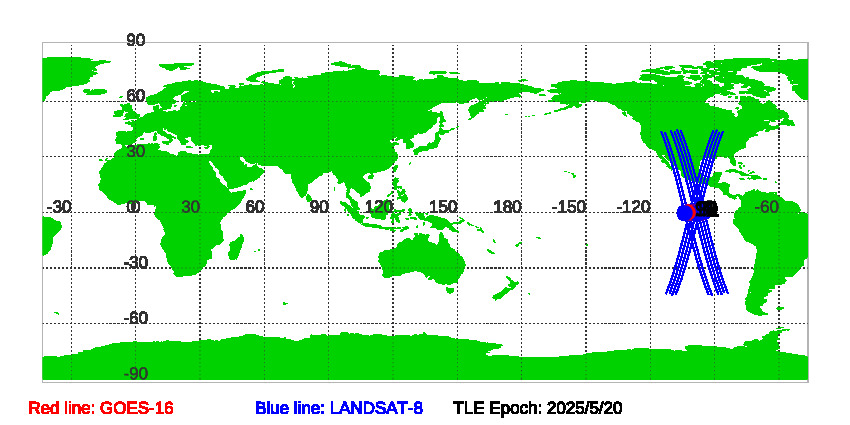

Figure of GOES-16 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 5/20/2025
Download SNOs between GOES-16 and LANDSAT-8 since TLE EPOCH: 05/20/2025 in txt file.
Historical Predications of SNOs between GOES-16 and LANDSAT-8
