Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and LANDSAT-8 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/12/2023
Index Date Time (GOES-16) GOES-16 Lat,Lon LANDSAT-8 Lat,Lon Distance(km) Time Diff (sec)
1 08/13/2023 02:59:59 0.01, -75.21 0.77, -71.72 396.44 80
2 08/13/2023 15:18:35 -0.02, -75.22 0.33, -76.88 188.57 80
3 08/15/2023 15:06:25 -0.02, -75.23 -0.27, -73.92 148.57 80
4 08/16/2023 03:30:30 0.01, -75.23 -0.82, -79.12 442.67 80
5 08/17/2023 14:54:16 -0.01, -75.25 -0.92, -70.98 486.46 80
6 08/18/2023 03:18:21 0.01, -75.25 -0.16, -76.17 104.61 80
7 08/20/2023 03:03:31 0.01, -75.28 0.44, -73.22 234.18 80
8 08/20/2023 15:27:27 -0.01, -75.30 0.65, -78.37 350.00 80
9 08/22/2023 15:15:18 -0.01, -75.33 -0.02, -75.43 11.10 80
10 08/24/2023 15:00:28 -0.00, -75.36 -0.64, -72.47 328.86 80
11 08/25/2023 03:24:32 0.00, -75.36 -0.50, -77.66 261.87 80

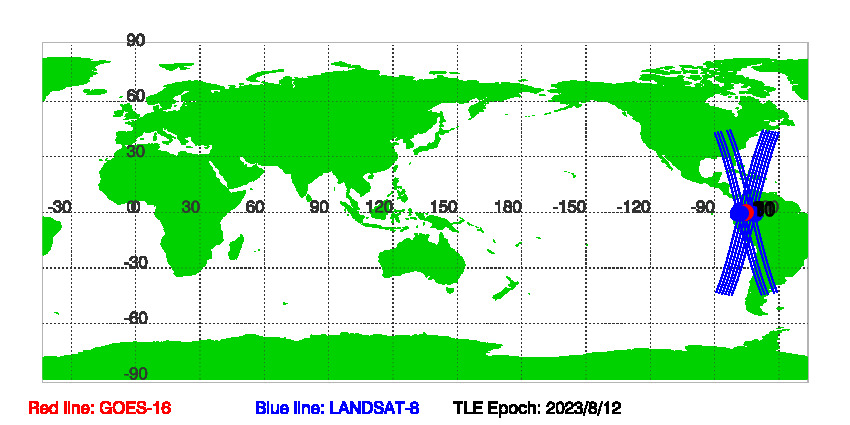

Figure of GOES-16 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 8/12/2023

Download SNOs between GOES-16 and LANDSAT-8 since TLE EPOCH: 08/12/2023 in txt file.

Historical Predications of SNOs between GOES-16 and LANDSAT-8
