Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and FY3D Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/22/2024
Index Date Time (GOES-16) GOES-16 Lat,Lon FY3D Lat,Lon Distance(km) Time Diff (sec)
1 08/22/2024 07:43:31 0.05, -75.20 0.45, -76.88 191.36 80
2 08/23/2024 07:27:36 0.06, -75.20 -0.60, -72.37 323.32 80
3 08/24/2024 19:47:05 -0.05, -75.20 -0.62, -77.69 283.37 80
4 08/25/2024 19:31:09 -0.05, -75.21 0.44, -73.18 231.52 80
5 08/27/2024 07:50:29 0.05, -75.22 0.79, -78.46 369.76 80
6 08/28/2024 07:34:33 0.04, -75.23 -0.27, -73.96 145.31 80
7 08/29/2024 19:54:03 -0.03, -75.23 -0.93, -79.28 460.76 80
8 08/30/2024 19:38:06 -0.03, -75.24 0.08, -74.76 54.80 80
9 09/02/2024 07:41:30 0.01, -75.28 0.05, -75.54 28.73 80
10 09/03/2024 07:22:53 0.01, -75.30 -0.98, -71.03 487.92 80
11 09/04/2024 19:42:22 -0.01, -75.33 -0.25, -76.34 115.76 80

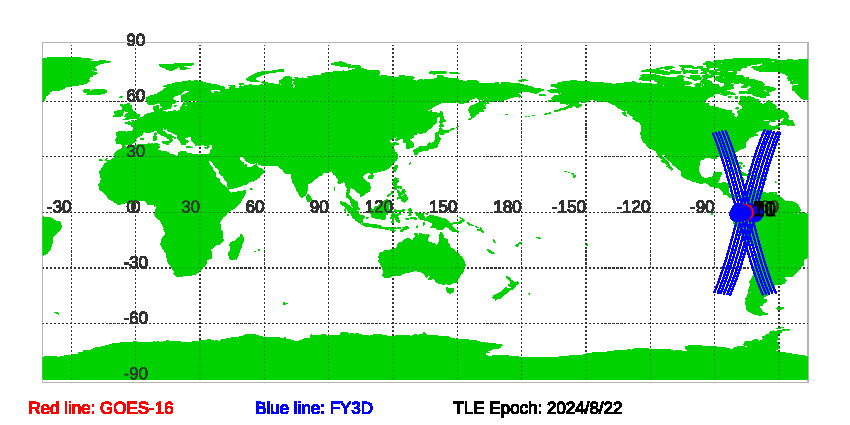

Figure of GOES-16 and FY3D satellite orbits during SNOs since TLE Epoch: 8/22/2024

Download SNOs between GOES-16 and FY3D since TLE EPOCH: 08/22/2024 in txt file.

Historical Predications of SNOs between GOES-16 and FY3D
