Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and FY3D Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/1/2024
Index Date Time (GOES-16) GOES-16 Lat,Lon FY3D Lat,Lon Distance(km) Time Diff (sec)
1 08/01/2024 07:34:00 0.06, -75.20 0.02, -75.00 22.38 80
2 08/03/2024 19:37:37 -0.05, -75.20 -0.17, -75.83 70.63 80
3 08/04/2024 19:21:42 -0.05, -75.21 0.81, -71.31 443.83 80
4 08/06/2024 07:43:45 0.05, -75.22 0.34, -76.62 158.66 80
5 08/07/2024 07:22:29 0.04, -75.23 -0.64, -72.10 356.37 80
6 08/08/2024 19:44:41 -0.04, -75.25 -0.53, -77.44 248.71 80
7 08/09/2024 19:28:46 -0.04, -75.27 0.52, -72.94 266.77 80
8 08/11/2024 07:50:48 0.04, -75.29 0.73, -78.22 334.40 80
9 08/12/2024 07:29:33 0.04, -75.30 -0.33, -73.72 181.21 80
10 08/13/2024 19:51:43 -0.03, -75.33 -0.89, -79.04 423.40 80
11 08/14/2024 19:35:49 -0.03, -75.35 0.17, -74.54 92.25 80

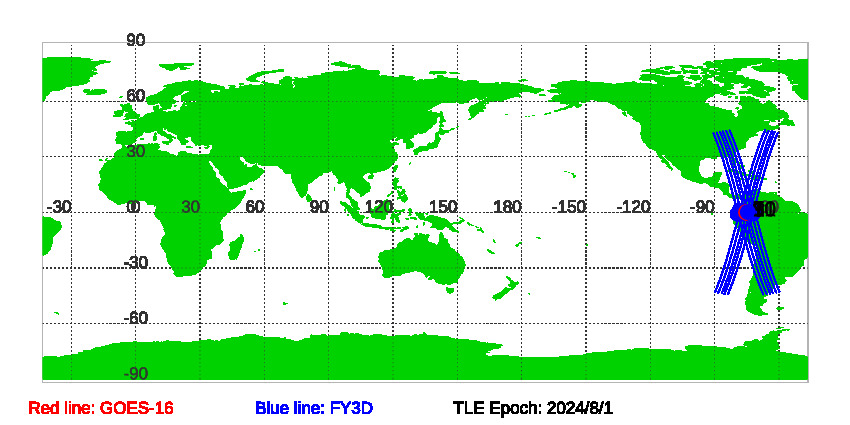

Figure of GOES-16 and FY3D satellite orbits during SNOs since TLE Epoch: 8/1/2024

Download SNOs between GOES-16 and FY3D since TLE EPOCH: 08/01/2024 in txt file.

Historical Predications of SNOs between GOES-16 and FY3D
