Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and FY3D Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/7/2023
Index Date Time (GOES-16) GOES-16 Lat,Lon FY3D Lat,Lon Distance(km) Time Diff (sec)
1 08/08/2023 19:10:58 -0.02, -75.23 -0.11, -75.65 48.10 80
2 08/09/2023 18:55:15 -0.02, -75.24 0.89, -71.19 460.71 80
3 08/11/2023 07:17:35 -0.01, -75.24 0.28, -76.58 151.47 80
4 08/12/2023 06:56:31 -0.01, -75.25 -0.73, -72.12 357.76 80
5 08/13/2023 19:19:00 0.01, -75.28 -0.52, -77.52 256.46 80
6 08/14/2023 19:03:16 0.00, -75.29 0.49, -73.07 253.29 80
7 08/16/2023 07:25:35 -0.00, -75.31 0.72, -78.44 356.54 80
8 08/17/2023 07:04:32 -0.00, -75.33 -0.29, -73.98 153.61 80
9 08/18/2023 19:27:01 -0.00, -75.37 -0.89, -79.40 459.34 80
10 08/19/2023 19:11:18 -0.00, -75.39 0.12, -74.94 51.36 80

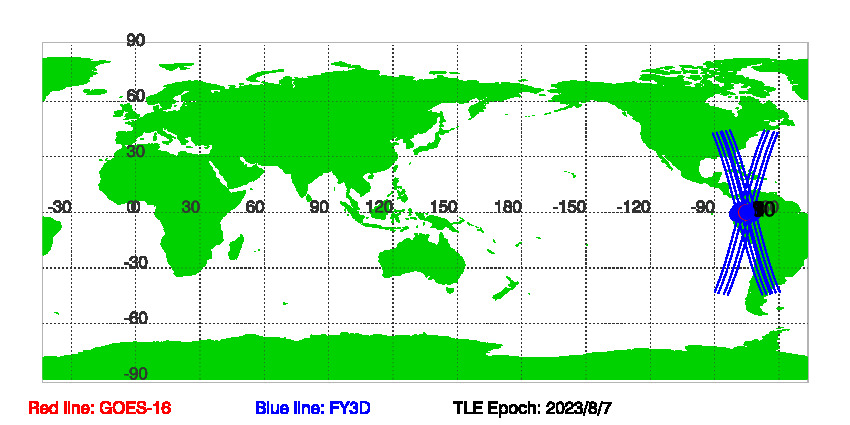

Figure of GOES-16 and FY3D satellite orbits during SNOs since TLE Epoch: 8/7/2023

Download SNOs between GOES-16 and FY3D since TLE EPOCH: 08/07/2023 in txt file.

Historical Predications of SNOs between GOES-16 and FY3D
