Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/13/2024
Index Date Time (GOES-16) GOES-16 Lat,Lon AQUA Lat,Lon Distance(km) Time Diff (sec)
1 12/14/2024 07:28:22 -0.01, -75.19 0.09, -75.51 37.36 80
2 12/16/2024 07:06:57 0.00, -75.19 -0.93, -70.93 485.05 80
3 12/16/2024 19:26:37 -0.00, -75.19 -0.13, -75.68 56.25 80
4 12/18/2024 19:10:31 -0.01, -75.20 0.90, -71.09 467.66 80
5 12/19/2024 07:30:04 0.01, -75.20 0.13, -75.82 69.91 80
6 12/21/2024 07:08:36 0.00, -75.22 -0.86, -71.22 455.47 80
7 12/21/2024 19:28:17 -0.00, -75.23 -0.17, -75.98 85.22 80
8 12/23/2024 19:12:08 -0.00, -75.26 0.83, -71.37 441.78 80
9 12/24/2024 07:31:41 0.00, -75.27 0.17, -76.10 94.74 80
10 12/26/2024 07:10:11 -0.00, -75.30 -0.84, -71.50 433.03 80
11 12/26/2024 19:29:51 0.00, -75.30 -0.21, -76.25 107.44 80

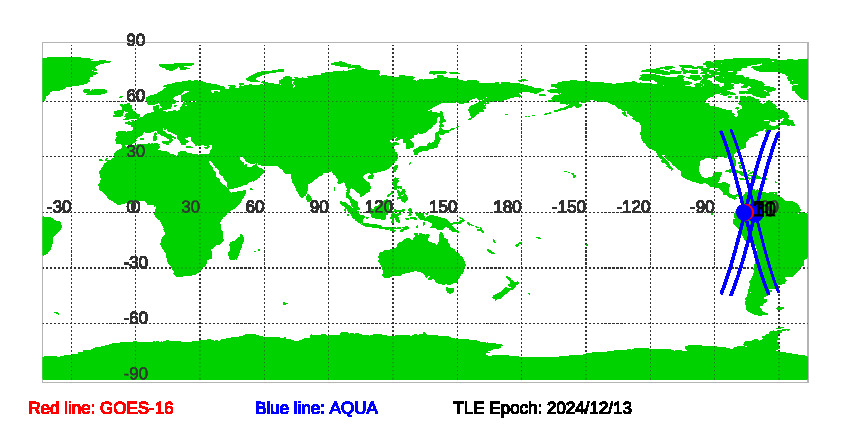

Figure of GOES-16 and AQUA satellite orbits during SNOs since TLE Epoch: 12/13/2024

Download SNOs between GOES-16 and AQUA since TLE EPOCH: 12/13/2024 in txt file.

Historical Predications of SNOs between GOES-16 and AQUA
