Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/28/2023
Index Date Time (GOES-16) GOES-16 Lat,Lon AQUA Lat,Lon Distance(km) Time Diff (sec)
1 04/28/2023 06:32:02 -0.03, -75.18 -0.78, -71.56 411.13 80
2 04/28/2023 18:55:40 0.02, -75.18 -0.28, -76.64 166.72 80
3 04/30/2023 18:39:06 0.02, -75.18 0.45, -73.26 219.57 80
4 05/01/2023 07:02:34 -0.01, -75.19 0.63, -78.30 352.81 80
5 05/03/2023 06:46:00 -0.02, -75.20 -0.09, -74.90 34.50 80
6 05/05/2023 06:32:05 -0.02, -75.22 -0.84, -71.51 422.35 80
7 05/05/2023 18:55:40 0.02, -75.22 -0.30, -76.57 154.90 80
8 05/07/2023 18:39:04 0.02, -75.23 0.44, -73.18 233.39 80
9 05/08/2023 07:02:33 -0.01, -75.24 0.61, -78.22 338.62 80
10 05/10/2023 06:45:56 -0.01, -75.26 -0.12, -74.82 50.10 80

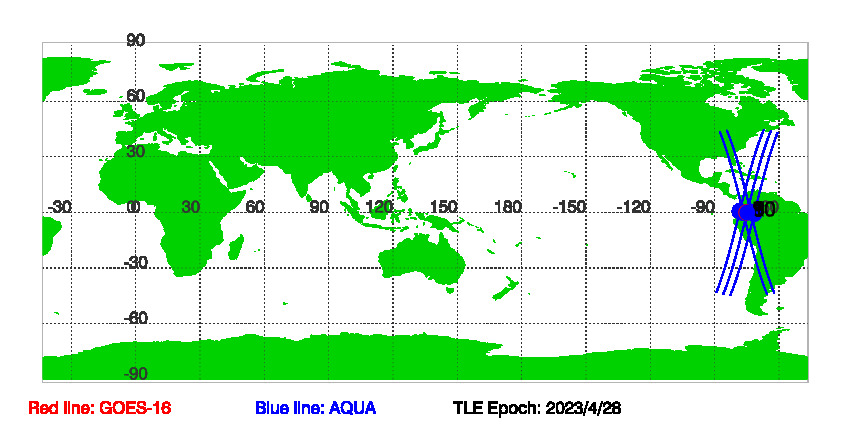

Figure of GOES-16 and AQUA satellite orbits during SNOs since TLE Epoch: 4/28/2023

Download SNOs between GOES-16 and AQUA since TLE EPOCH: 04/28/2023 in txt file.

Historical Predications of SNOs between GOES-16 and AQUA
