Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/25/2023
Index Date Time (GOES-16) GOES-16 Lat,Lon AQUA Lat,Lon Distance(km) Time Diff (sec)
1 04/26/2023 06:45:56 -0.03, -75.19 -0.10, -74.96 26.60 80
2 04/28/2023 06:32:02 -0.03, -75.19 -0.80, -71.57 412.04 80
3 04/28/2023 18:55:39 0.02, -75.19 -0.31, -76.64 165.62 80
4 04/30/2023 18:39:05 0.02, -75.19 0.46, -73.25 221.42 80
5 05/01/2023 07:02:32 -0.01, -75.20 0.66, -78.28 350.80 80
6 05/03/2023 06:45:58 -0.02, -75.22 -0.11, -74.90 37.50 80
7 05/05/2023 06:32:01 -0.02, -75.24 -0.82, -71.49 426.26 80
8 05/05/2023 18:55:36 0.01, -75.24 -0.29, -76.56 150.63 80
9 05/07/2023 18:38:59 0.02, -75.26 0.49, -73.16 238.84 80
10 05/08/2023 07:02:27 -0.01, -75.27 0.59, -78.20 332.94 80

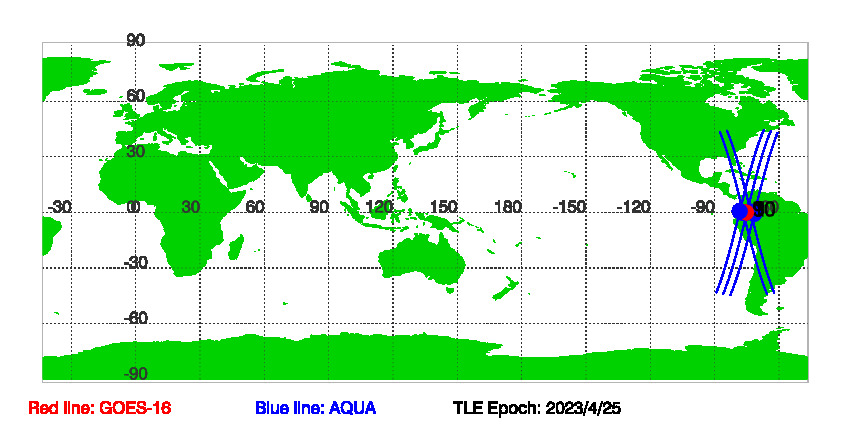

Figure of GOES-16 and AQUA satellite orbits during SNOs since TLE Epoch: 4/25/2023

Download SNOs between GOES-16 and AQUA since TLE EPOCH: 04/25/2023 in txt file.

Historical Predications of SNOs between GOES-16 and AQUA
