Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-15 and NPP Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/16/2024
| Index | Date | Time (GOES-15) | GOES-15 Lat,Lon | NPP Lat,Lon | Distance(km) | Time Diff (sec) |
| 1 | 12/16/2024 | 09:17:48 | 0.01, 61.46 | 0.17, 62.10 | 73.59 | 80 |
| 2 | 12/18/2024 | 21:18:15 | -0.01, 61.37 | 0.02, 61.35 | 3.68 | 80 |
| 3 | 12/21/2024 | 09:21:32 | 0.02, 61.45 | -0.17, 60.56 | 101.72 | 80 |
| 4 | 12/22/2024 | 09:05:29 | 0.02, 61.45 | 0.82, 65.09 | 414.80 | 80 |
| 5 | 12/23/2024 | 21:27:19 | -0.03, 61.35 | 0.33, 59.81 | 176.25 | 80 |
| 6 | 12/24/2024 | 21:05:56 | -0.02, 61.36 | -0.71, 64.33 | 339.30 | 80 |
| 7 | 12/26/2024 | 09:27:55 | 0.03, 61.46 | -0.52, 59.02 | 277.56 | 80 |
| 8 | 12/27/2024 | 09:11:51 | 0.02, 61.46 | 0.48, 63.55 | 238.40 | 80 |
| 9 | 12/28/2024 | 21:33:42 | -0.03, 61.36 | 0.67, 58.27 | 352.26 | 80 |
| 10 | 12/29/2024 | 21:12:18 | -0.01, 61.37 | -0.33, 62.80 | 162.50 | 80 |

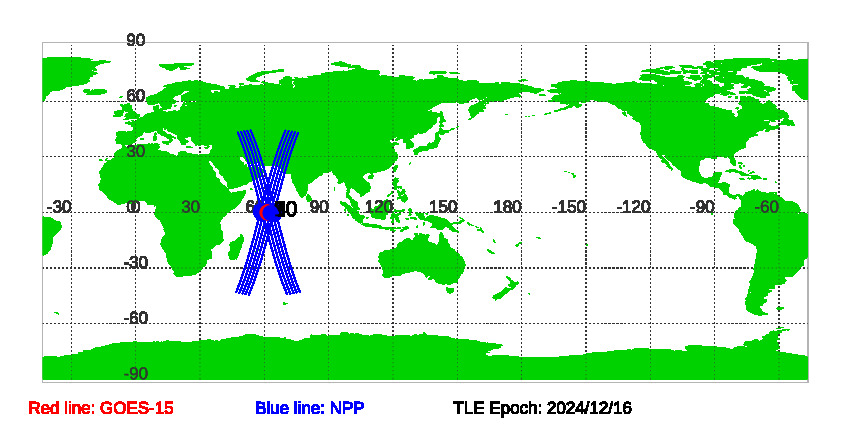

Figure of GOES-15 and NPP satellite orbits during SNOs since TLE Epoch: 12/16/2024
Download SNOs between GOES-15 and NPP since TLE EPOCH: 12/16/2024 in txt file.
Historical Predications of SNOs between GOES-15 and NPP
