Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-15 and NPP Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/2/2023
Index Date Time (GOES-15) GOES-15 Lat,Lon NPP Lat,Lon Distance(km) Time Diff (sec)
1 06/02/2023 23:48:15 -0.00,-156.13 0.23,-155.00 127.72 80
2 06/04/2023 12:10:04 -0.04,-156.77 0.77,-160.31 403.29 80
3 06/05/2023 11:48:40 -0.01,-157.18 -0.30,-155.79 158.46 80
4 06/07/2023 00:10:38 0.05,-157.80 -0.68,-161.14 379.64 80
5 06/07/2023 23:54:33 0.03,-158.21 0.40,-156.62 181.89 80
6 06/09/2023 12:16:23 -0.06,-158.85 0.60,-161.93 350.27 80
7 06/10/2023 11:54:57 -0.03,-159.25 -0.42,-157.40 210.99 80
8 06/12/2023 00:16:55 0.07,-159.86 -0.55,-162.75 327.91 80
9 06/13/2023 00:00:50 0.05,-160.27 0.48,-158.22 233.21 80
10 06/14/2023 12:19:59 -0.08,-160.90 0.52,-163.52 299.77 80
11 06/15/2023 12:03:55 -0.07,-161.30 -0.57,-159.01 260.68 80

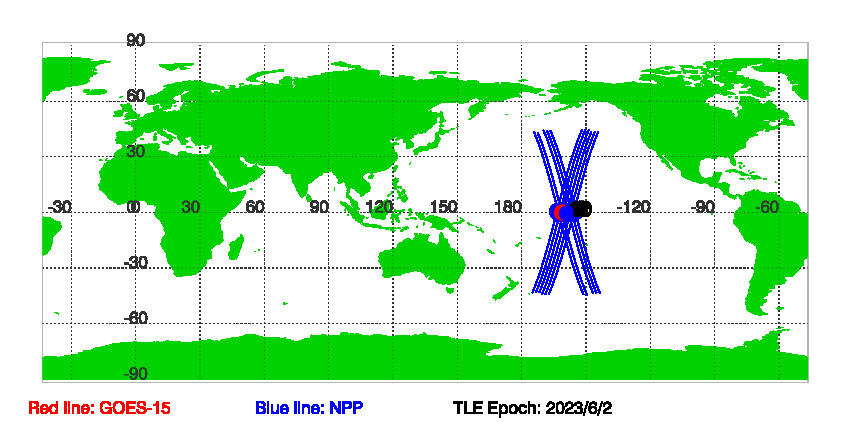

Figure of GOES-15 and NPP satellite orbits during SNOs since TLE Epoch: 6/2/2023

Download SNOs between GOES-15 and NPP since TLE EPOCH: 06/02/2023 in txt file.

Historical Predications of SNOs between GOES-15 and NPP
