Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between GOES-15 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/18/2025
Index | Date | Time (GOES-15) | GOES-15 Lat,Lon | NOAA-19 Lat,Lon | Distance(km) | Time Diff (sec) |
1 | 05/19/2025 | 17:53:49 | 0.20, 61.66 | -0.50, 58.64 | 344.74 | 80 |
2 | 05/20/2025 | 17:41:11 | 0.21, 61.64 | 0.21, 61.70 | 6.81 | 80 |
3 | 05/21/2025 | 17:25:54 | 0.21, 61.62 | 0.91, 64.76 | 357.95 | 80 |
4 | 05/23/2025 | 05:59:40 | -0.19, 61.60 | 0.78, 57.28 | 492.07 | 80 |
5 | 05/24/2025 | 05:47:03 | -0.20, 61.59 | 0.08, 60.35 | 141.22 | 80 |
6 | 05/25/2025 | 05:31:45 | -0.20, 61.58 | -0.62, 63.41 | 209.38 | 80 |
7 | 05/27/2025 | 17:53:10 | 0.19, 61.56 | -0.40, 58.94 | 299.03 | 80 |
8 | 05/28/2025 | 17:37:52 | 0.20, 61.56 | 0.33, 62.00 | 51.29 | 80 |
9 | 05/29/2025 | 17:25:14 | 0.21, 61.55 | 0.99, 65.07 | 401.38 | 80 |
10 | 05/31/2025 | 05:59:01 | -0.18, 61.54 | 0.71, 57.59 | 450.25 | 80 |
11 | 06/01/2025 | 05:46:24 | -0.19, 61.54 | -0.01, 60.66 | 100.23 | 80 |

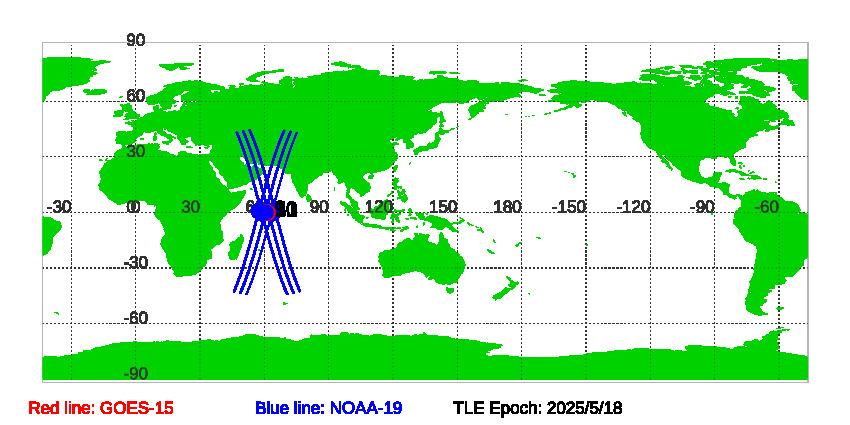

Figure of GOES-15 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 5/18/2025
Download SNOs between GOES-15 and NOAA-19 since TLE EPOCH: 05/18/2025 in txt file.
