Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-15 and METOP-B Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/10/2023
Index Date Time (GOES-15) GOES-15 Lat,Lon METOP-B Lat,Lon Distance(km) Time Diff (sec)
1 10/10/2023 15:54:14 0.32, 86.78 -0.35, 83.86 332.33 80
2 10/11/2023 15:30:58 0.31, 85.72 0.99, 88.81 351.73 80
3 10/13/2023 03:49:54 -0.31, 83.97 -0.34, 84.17 21.80 80
4 10/14/2023 16:11:38 0.32, 82.46 -0.35, 79.50 337.82 80
5 10/15/2023 15:48:22 0.31, 81.40 1.00, 84.44 346.47 80
6 10/17/2023 04:07:18 -0.32, 79.66 -0.37, 79.80 16.52 80
7 10/18/2023 16:29:01 0.32, 78.14 -0.37, 75.14 342.88 80
8 10/19/2023 16:05:45 0.31, 77.09 0.99, 80.08 341.10 80
9 10/21/2023 04:24:40 -0.31, 75.35 -0.31, 75.45 10.38 80
10 10/22/2023 16:46:23 0.31, 73.84 -0.40, 70.78 348.74 80
11 10/23/2023 16:23:07 0.30, 72.79 0.97, 75.72 335.15 80

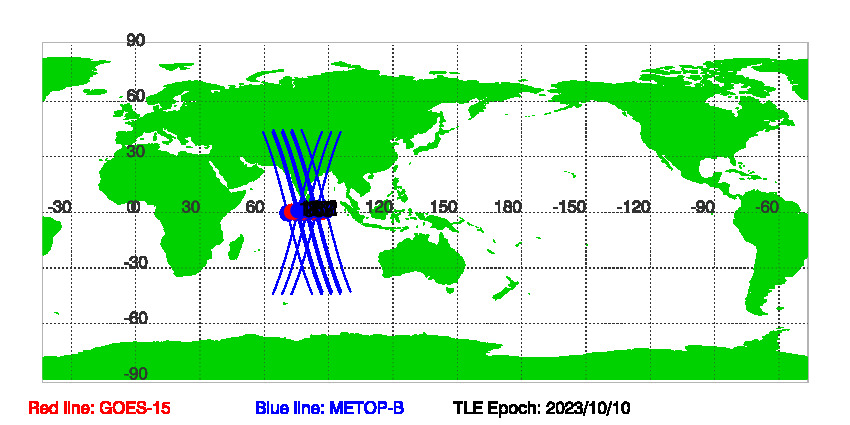

Figure of GOES-15 and METOP-B satellite orbits during SNOs since TLE Epoch: 10/10/2023

Download SNOs between GOES-15 and METOP-B since TLE EPOCH: 10/10/2023 in txt file.

Historical Predications of SNOs between GOES-15 and METOP-B
