Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-15 and LANDSAT-8 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/17/2022
Index Date Time (GOES-15) GOES-15 Lat,Lon LANDSAT-8 Lat,Lon Distance(km) Time Diff (sec)
1 12/17/2022 07:01:10 0.09,-127.39 -0.79,-131.65 483.31 80
2 12/18/2022 18:27:33 -0.10,-127.30 -0.93,-123.49 433.60 80
3 12/19/2022 06:48:56 0.09,-127.30 -0.22,-128.67 155.98 80
4 12/21/2022 06:34:03 0.09,-127.21 0.42,-125.71 170.56 80
5 12/21/2022 18:55:17 -0.08,-127.15 0.73,-130.85 421.64 80
6 12/23/2022 06:21:49 0.09,-127.10 1.01,-122.74 496.26 80
7 12/23/2022 18:43:04 -0.08,-127.05 0.08,-127.89 96.03 80
8 12/25/2022 18:33:30 -0.08,-126.94 -0.53,-124.93 229.22 80
9 12/26/2022 06:54:52 0.07,-126.94 -0.61,-130.11 360.02 80
10 12/28/2022 06:42:39 0.06,-126.83 0.01,-127.14 34.84 80
11 12/30/2022 06:27:44 0.06,-126.72 0.58,-124.16 290.44 80
12 12/30/2022 18:48:58 -0.05,-126.65 0.50,-129.32 302.80 80

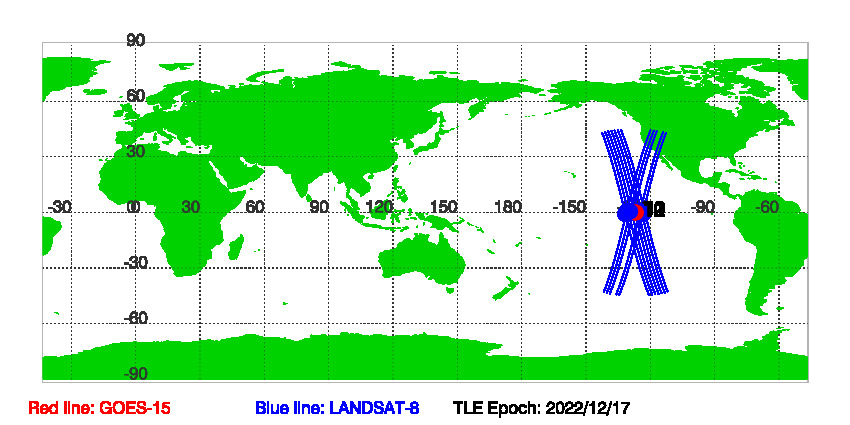

Figure of GOES-15 and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 12/17/2022

Download SNOs between GOES-15 and LANDSAT-8 since TLE EPOCH: 12/17/2022 in txt file.

Historical Predications of SNOs between GOES-15 and LANDSAT-8
