Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/12/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 08/15/2025 | 01:56:41 | 78.05, 150.94 | 63.98 | 08/15/2025 | 01:57:53 | 78.04, 151.09 | 63.97 | 3.46 | 72 |
| 2 | 08/15/2025 | 02:47:23 | -77.98, -41.36 | 116.09 | 08/15/2025 | 02:47:14 | -77.98, -41.52 | 116.09 | 3.58 | 9 |
| 3 | 08/17/2025 | 13:08:52 | 78.01, -16.80 | 64.71 | 08/17/2025 | 13:08:51 | 78.00, -16.88 | 64.71 | 2.11 | 1 |
| 4 | 08/17/2025 | 13:59:24 | -77.54, 152.96 | 115.75 | 08/17/2025 | 13:58:20 | -77.58, 149.03 | 115.70 | 94.31 | 64 |
| 5 | 08/19/2025 | 23:30:19 | -78.03, 7.76 | 114.47 | 08/19/2025 | 23:30:29 | -78.02, 7.74 | 114.49 | 1.62 | 10 |
| 6 | 08/20/2025 | 00:21:01 | 77.89, 175.87 | 65.40 | 08/20/2025 | 00:19:49 | 77.94, 175.08 | 65.45 | 19.47 | 72 |
| 7 | 08/22/2025 | 09:51:46 | 78.03, 32.49 | 66.34 | 08/22/2025 | 09:52:04 | 78.04, 32.37 | 66.35 | 3.09 | 18 |
| 8 | 08/22/2025 | 10:42:29 | -77.99,-160.01 | 113.69 | 08/22/2025 | 10:41:25 | -78.00,-160.13 | 113.69 | 2.88 | 64 |
| 9 | 08/24/2025 | 20:13:13 | -78.06, 57.03 | 112.81 | 08/24/2025 | 20:13:42 | -78.04, 56.93 | 112.82 | 2.74 | 29 |

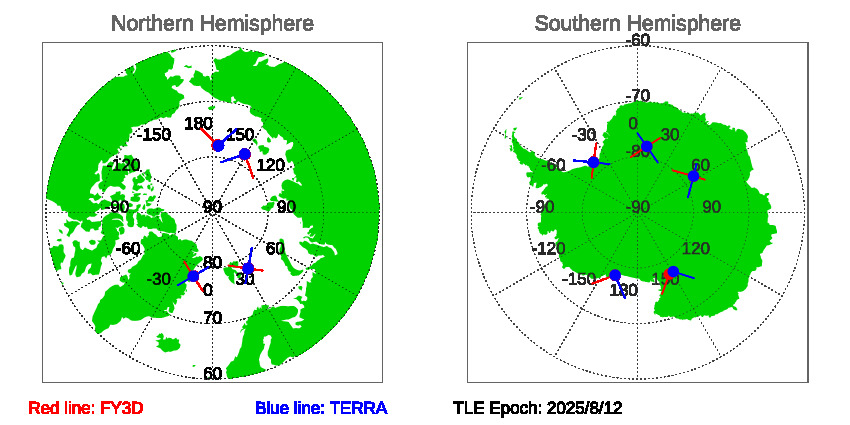

Figure of FY3D and TERRA satellite orbits during SNOs since TLE Epoch: 8/12/2025
Download SNOs between FY3D and TERRA since TLE EPOCH: 08/12/2025 in txt file.
Historial Predications of SNOs between FY3D and TERRA
