Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/3/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/04/2025 | 16:10:28 | -77.80, 117.71 | 125.08 | 07/04/2025 | 16:10:46 | -77.82, 117.79 | 125.06 | 2.76 | 18 |
| 2 | 07/04/2025 | 17:01:12 | 77.77, -74.81 | 54.90 | 07/04/2025 | 17:00:06 | 77.78, -74.74 | 54.90 | 1.50 | 66 |
| 3 | 07/07/2025 | 02:31:55 | 77.81, 142.40 | 55.17 | 07/07/2025 | 02:32:29 | 77.83, 142.34 | 55.20 | 3.04 | 34 |
| 4 | 07/07/2025 | 03:22:39 | -77.78, -50.14 | 124.86 | 07/07/2025 | 03:21:49 | -77.81, -50.10 | 124.83 | 3.13 | 50 |
| 5 | 07/09/2025 | 12:53:23 | -77.86, 166.85 | 124.50 | 07/09/2025 | 12:54:12 | -77.85, 166.93 | 124.51 | 2.10 | 49 |
| 6 | 07/09/2025 | 13:44:07 | 77.82, -25.67 | 55.48 | 07/09/2025 | 13:43:32 | 77.80, -25.59 | 55.45 | 3.16 | 35 |
| 7 | 07/11/2025 | 23:14:49 | 77.86,-168.50 | 55.84 | 07/11/2025 | 23:15:53 | 77.88,-168.41 | 55.85 | 2.48 | 64 |
| 8 | 07/12/2025 | 00:05:33 | -77.84, -1.03 | 124.19 | 07/12/2025 | 00:05:14 | -77.81, -1.05 | 124.22 | 3.30 | 19 |
| 9 | 07/14/2025 | 09:36:24 | -78.19,-145.60 | 123.47 | 07/14/2025 | 09:37:31 | -78.10,-142.93 | 123.58 | 61.85 | 67 |
| 10 | 07/14/2025 | 10:27:00 | 77.85, 23.61 | 56.18 | 07/14/2025 | 10:26:56 | 77.83, 23.56 | 56.16 | 2.76 | 4 |
| 11 | 07/16/2025 | 20:48:27 | -77.87, 48.21 | 123.41 | 07/16/2025 | 20:48:38 | -77.85, 48.20 | 123.43 | 1.49 | 11 |

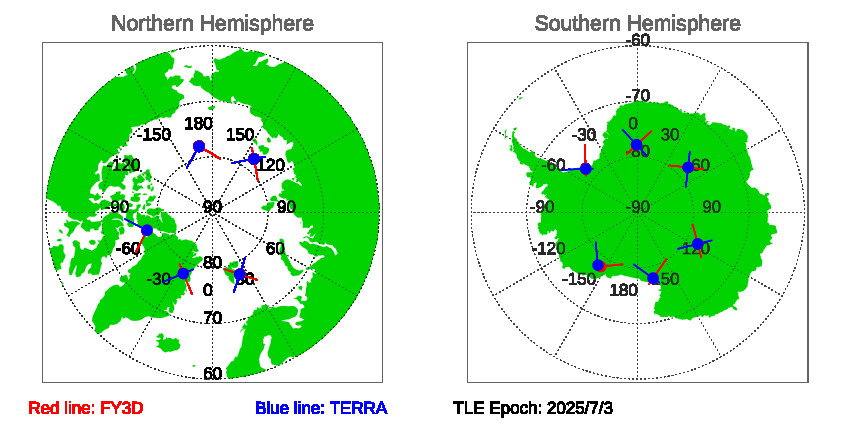

Figure of FY3D and TERRA satellite orbits during SNOs since TLE Epoch: 7/3/2025
Download SNOs between FY3D and TERRA since TLE EPOCH: 07/03/2025 in txt file.
Historial Predications of SNOs between FY3D and TERRA
