Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between FY3D and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 3/21/2022
Index Date (FY3D) Time (FY3D) Lat,Lon (FY3D) SZA (FY3D ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 03/21/2022 10:49:04 71.09, 17.59 70.68 03/21/2022 10:49:28 71.08, 17.59 70.67 0.88 24
2 03/21/2022 11:39:46 -70.99,-174.93 109.44 03/21/2022 11:38:57 -71.01,-174.88 109.42 2.79 49
3 03/24/2022 01:25:39 71.80, 157.24 70.37 03/24/2022 01:26:47 71.66, 159.14 70.21 67.67 68
4 03/24/2022 02:16:09 -71.08, -34.15 110.38 03/24/2022 02:16:26 -71.06, -34.21 110.41 3.37 17
5 03/24/2022 03:06:55 71.00, 133.29 69.53 03/24/2022 03:05:52 71.01, 133.36 69.54 2.77 63
6 03/26/2022 16:52:39 -71.48, 106.08 111.01 03/26/2022 16:53:50 -71.41, 106.96 111.08 31.86 71
7 03/26/2022 17:43:19 71.09, -85.94 68.59 03/26/2022 17:43:21 71.09, -85.90 68.59 1.26 2
8 03/26/2022 18:34:01 -70.99, 81.56 111.53 03/26/2022 18:32:51 -70.98, 81.55 111.54 1.24 70
9 03/29/2022 08:19:43 71.19, 54.82 67.67 03/29/2022 08:20:50 71.17, 54.82 67.64 2.61 67
10 03/29/2022 09:10:25 -71.08,-137.67 112.46 03/29/2022 09:10:19 -71.11,-137.64 112.43 3.31 6
11 03/29/2022 10:01:03 70.59, 30.45 67.04 03/29/2022 09:59:52 70.67, 29.33 67.13 41.98 71
12 03/31/2022 23:46:49 -71.18, 3.09 113.38 03/31/2022 23:47:48 -71.17, 3.07 113.38 0.98 59
13 04/01/2022 00:37:34 71.06, 170.59 66.50 04/01/2022 00:37:15 71.06, 170.54 66.50 2.03 19
14 04/01/2022 01:28:04 -70.32, -20.87 114.27 04/01/2022 01:26:56 -70.35, -22.90 114.22 76.07 68
15 04/03/2022 15:13:57 71.17, -48.66 65.61 04/03/2022 15:14:42 71.17, -48.69 65.60 1.01 45
16 04/03/2022 16:04:40 -71.10, 118.78 114.49 04/03/2022 16:04:11 -71.12, 118.86 114.47 3.76 29

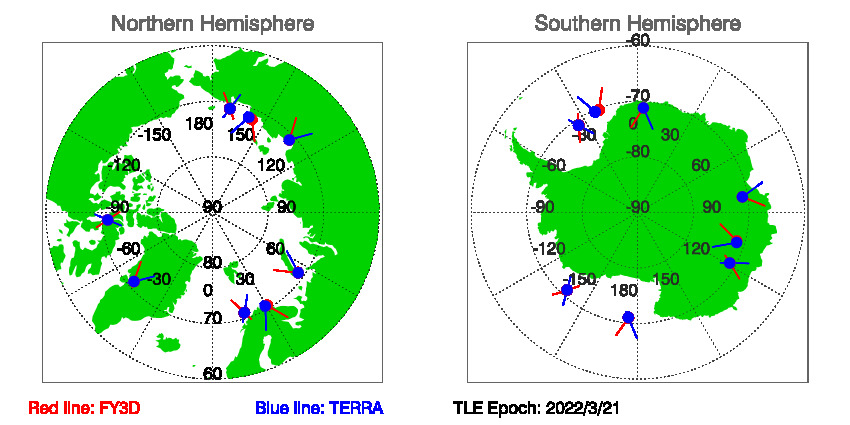

Figure of FY3D and TERRA satellite orbits during SNOs since TLE Epoch: 3/21/2022

Download SNOs between FY3D and TERRA since TLE EPOCH: 03/21/2022 in txt file.

Historial Predications of SNOs between FY3D and TERRA
