Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/9/2021
Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 04/11/2021 | 13:24:42 | 69.54, -21.52 | 60.91 | 04/11/2021 | 13:25:19 | 69.57, -21.56 | 60.93 | 3.30 | 37 |
2 | 04/11/2021 | 14:15:24 | -69.45, 145.93 | 119.20 | 04/11/2021 | 14:14:49 | -69.45, 145.93 | 119.20 | 0.25 | 35 |
3 | 04/14/2021 | 05:41:03 | 69.61, 94.31 | 60.00 | 04/14/2021 | 05:41:46 | 69.59, 94.36 | 59.99 | 2.32 | 43 |
4 | 04/14/2021 | 06:31:44 | -69.47, -98.16 | 120.16 | 04/14/2021 | 06:31:16 | -69.48, -98.16 | 120.14 | 2.01 | 28 |
5 | 04/16/2021 | 21:57:23 | 69.63,-149.78 | 59.07 | 04/16/2021 | 21:58:13 | 69.62,-149.73 | 59.06 | 1.99 | 50 |
6 | 04/16/2021 | 22:48:04 | -69.48, 17.75 | 121.09 | 04/16/2021 | 22:47:43 | -69.51, 17.76 | 121.07 | 2.85 | 21 |
7 | 04/16/2021 | 23:38:32 | 68.56,-173.66 | 57.98 | 04/16/2021 | 23:37:25 | 68.56,-175.81 | 57.98 | 87.42 | 67 |
8 | 04/19/2021 | 14:13:43 | 69.65, -33.87 | 58.16 | 04/19/2021 | 14:14:40 | 69.64, -33.83 | 58.14 | 2.11 | 57 |
9 | 04/19/2021 | 15:04:24 | -69.51, 133.65 | 122.00 | 04/19/2021 | 15:04:10 | -69.53, 133.66 | 121.98 | 2.78 | 14 |
10 | 04/19/2021 | 15:54:56 | 68.80, -58.04 | 57.28 | 04/19/2021 | 15:53:47 | 68.86, -59.56 | 57.34 | 61.62 | 69 |
11 | 04/22/2021 | 06:30:02 | 69.67, 82.03 | 57.27 | 04/22/2021 | 06:31:06 | 69.65, 82.07 | 57.25 | 2.92 | 64 |
12 | 04/22/2021 | 07:20:43 | -69.53,-110.45 | 122.89 | 04/22/2021 | 07:20:36 | -69.55,-110.44 | 122.87 | 1.79 | 7 |
13 | 04/22/2021 | 08:11:20 | 69.09, 57.50 | 56.66 | 04/22/2021 | 08:10:08 | 69.15, 56.69 | 56.72 | 32.83 | 72 |

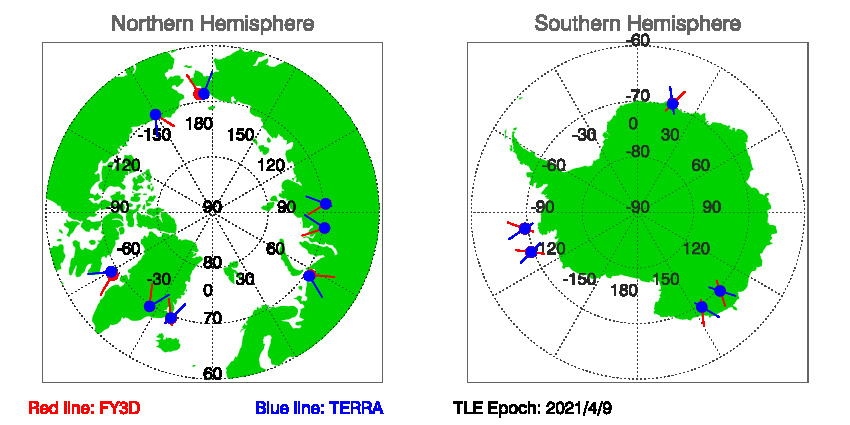

Figure of FY3D and TERRA satellite orbits during SNOs since TLE Epoch: 4/9/2021
Download SNOs between FY3D and TERRA since TLE EPOCH: 04/09/2021 in txt file.
Historial Predications of SNOs between FY3D and TERRA
