Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 3/17/2021
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 03/18/2021 | 10:07:00 | -69.52,-152.21 | 109.80 | 03/18/2021 | 10:07:53 | -69.53,-152.15 | 109.79 | 3.04 | 53 |
| 2 | 03/18/2021 | 10:57:43 | 69.40, 15.28 | 70.07 | 03/18/2021 | 10:57:21 | 69.37, 15.29 | 70.05 | 2.57 | 22 |
| 3 | 03/18/2021 | 11:48:10 | -68.56,-176.25 | 110.80 | 03/18/2021 | 11:47:02 | -68.59,-178.07 | 110.74 | 74.10 | 68 |
| 4 | 03/21/2021 | 02:23:19 | -69.50, -36.26 | 110.87 | 03/21/2021 | 02:24:19 | -69.53, -36.27 | 110.85 | 3.14 | 60 |
| 5 | 03/21/2021 | 03:14:02 | 69.39, 131.22 | 69.00 | 03/21/2021 | 03:13:47 | 69.37, 131.16 | 68.98 | 3.38 | 15 |
| 6 | 03/21/2021 | 04:04:35 | -68.82, -60.66 | 111.60 | 03/21/2021 | 04:03:24 | -68.87, -61.85 | 111.53 | 48.19 | 71 |
| 7 | 03/23/2021 | 18:39:40 | -69.55, 79.62 | 111.89 | 03/23/2021 | 18:40:46 | -69.53, 79.60 | 111.91 | 2.26 | 66 |
| 8 | 03/23/2021 | 19:30:23 | 69.43,-112.91 | 67.99 | 03/23/2021 | 19:30:13 | 69.41,-112.90 | 67.97 | 2.24 | 10 |
| 9 | 03/23/2021 | 20:20:59 | -69.02, 55.00 | 112.46 | 03/23/2021 | 20:19:47 | -69.09, 54.30 | 112.38 | 28.65 | 72 |
| 10 | 03/26/2021 | 10:56:01 | -69.59,-164.51 | 112.90 | 03/26/2021 | 10:57:12 | -69.57,-164.46 | 112.93 | 3.04 | 71 |
| 11 | 03/26/2021 | 11:46:43 | 69.43, 3.04 | 66.92 | 03/26/2021 | 11:46:39 | 69.45, 3.03 | 66.95 | 2.98 | 4 |
| 12 | 03/26/2021 | 12:37:23 | -69.22, 170.65 | 113.31 | 03/26/2021 | 12:36:11 | -69.24, 170.38 | 113.28 | 10.69 | 72 |
| 13 | 03/29/2021 | 03:12:25 | -69.79, -48.88 | 113.74 | 03/29/2021 | 03:13:36 | -69.72, -48.38 | 113.83 | 21.02 | 71 |
| 14 | 03/29/2021 | 04:03:03 | 69.47, 118.90 | 65.92 | 03/29/2021 | 04:03:04 | 69.49, 118.96 | 65.94 | 2.88 | 1 |
| 15 | 03/29/2021 | 04:53:44 | -69.32, -73.56 | 114.26 | 03/29/2021 | 04:52:35 | -69.33, -73.61 | 114.24 | 2.87 | 69 |

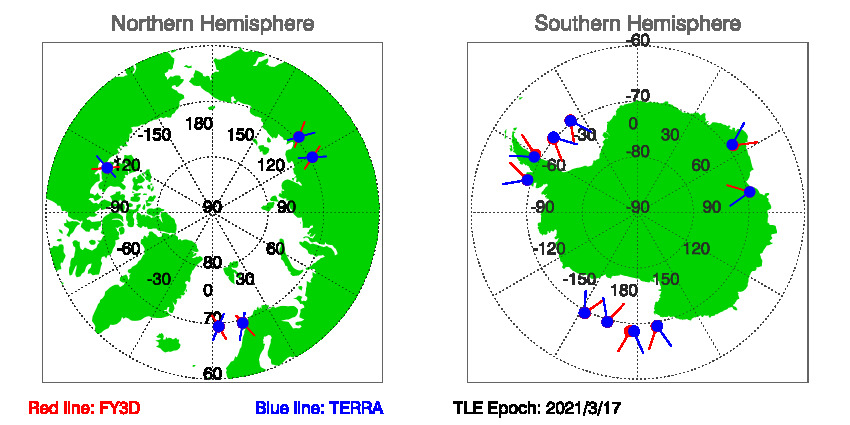

Figure of FY3D and TERRA satellite orbits during SNOs since TLE Epoch: 3/17/2021
Download SNOs between FY3D and TERRA since TLE EPOCH: 03/17/2021 in txt file.
Historial Predications of SNOs between FY3D and TERRA
