Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and METOP-C Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/28/2022
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (METOP-C) | Time (METOP-C) | Lat,Lon (METOP-C) | SZA (METOP-C ) | Distance(km) | Time Diff (sec) |
| 1 | 07/01/2022 | 01:04:20 | 74.80, 156.83 | 51.77 | 07/01/2022 | 01:05:25 | 74.75, 160.24 | 51.60 | 99.86 | 65 |
| 2 | 07/01/2022 | 01:55:03 | -74.73, -35.67 | 128.31 | 07/01/2022 | 01:56:09 | -74.70, -32.59 | 128.45 | 90.26 | 66 |
| 3 | 07/01/2022 | 02:45:44 | 74.44, 132.42 | 51.38 | 07/01/2022 | 02:46:54 | 74.39, 133.94 | 51.27 | 45.97 | 70 |
| 4 | 07/01/2022 | 03:36:27 | -74.37, -60.09 | 128.69 | 07/01/2022 | 03:37:38 | -74.34, -58.88 | 128.78 | 36.54 | 71 |
| 5 | 07/01/2022 | 04:27:09 | 74.13, 107.84 | 51.05 | 07/01/2022 | 04:28:21 | 74.13, 107.93 | 51.03 | 2.82 | 72 |
| 6 | 07/01/2022 | 05:17:53 | -74.11, -84.80 | 128.97 | 07/01/2022 | 05:19:04 | -74.12, -84.76 | 128.98 | 1.23 | 71 |
| 7 | 07/01/2022 | 06:08:40 | 74.12, 82.50 | 51.04 | 07/01/2022 | 06:09:43 | 74.11, 82.54 | 51.02 | 1.58 | 63 |
| 8 | 07/01/2022 | 06:59:24 | -74.10,-110.14 | 128.98 | 07/01/2022 | 07:00:26 | -74.10,-110.15 | 128.99 | 0.61 | 62 |
| 9 | 07/01/2022 | 07:50:11 | 74.10, 57.16 | 51.02 | 07/01/2022 | 07:51:05 | 74.09, 57.15 | 51.00 | 1.62 | 54 |
| 10 | 07/01/2022 | 08:40:55 | -74.08,-135.47 | 129.00 | 07/01/2022 | 08:41:48 | -74.08,-135.55 | 129.00 | 2.18 | 53 |
| 11 | 07/01/2022 | 09:31:42 | 74.08, 31.83 | 51.01 | 07/01/2022 | 09:32:27 | 74.07, 31.76 | 50.99 | 2.90 | 45 |
| 12 | 07/01/2022 | 10:22:27 | -74.11,-160.94 | 128.96 | 07/01/2022 | 10:23:09 | -74.11,-160.81 | 128.97 | 3.73 | 42 |
| 13 | 07/01/2022 | 11:13:13 | 74.07, 6.49 | 51.00 | 07/01/2022 | 11:13:48 | 74.09, 6.49 | 51.02 | 3.10 | 35 |
| 14 | 07/01/2022 | 12:03:58 | -74.10, 173.73 | 128.97 | 07/01/2022 | 12:04:31 | -74.09, 173.80 | 128.99 | 2.30 | 33 |
| 15 | 07/01/2022 | 12:54:44 | 74.05, -18.85 | 50.99 | 07/01/2022 | 12:55:10 | 74.07, -18.90 | 51.01 | 3.14 | 26 |
| 16 | 07/01/2022 | 13:45:29 | -74.08, 148.39 | 128.98 | 07/01/2022 | 13:45:53 | -74.07, 148.41 | 129.00 | 1.48 | 24 |
| 17 | 07/01/2022 | 14:36:16 | 74.08, -44.31 | 51.03 | 07/01/2022 | 14:36:32 | 74.05, -44.29 | 50.99 | 3.23 | 16 |
| 18 | 07/01/2022 | 15:27:00 | -74.06, 123.05 | 129.00 | 07/01/2022 | 15:27:15 | -74.05, 123.01 | 129.01 | 2.13 | 15 |
| 19 | 07/01/2022 | 16:17:47 | 74.07, -69.65 | 51.01 | 07/01/2022 | 16:17:53 | 74.08, -69.56 | 51.03 | 3.22 | 6 |
| 20 | 07/01/2022 | 17:08:31 | -74.05, 97.71 | 129.01 | 07/01/2022 | 17:08:36 | -74.08, 97.75 | 128.98 | 3.38 | 5 |
| 21 | 07/01/2022 | 17:59:18 | 74.05, -94.98 | 51.00 | 07/01/2022 | 17:59:15 | 74.06, -94.95 | 51.01 | 1.77 | 3 |
| 22 | 07/01/2022 | 18:50:02 | -74.03, 72.38 | 129.02 | 07/01/2022 | 18:49:58 | -74.06, 72.36 | 129.00 | 2.88 | 4 |
| 23 | 07/01/2022 | 19:40:49 | 74.03,-120.32 | 50.99 | 07/01/2022 | 19:40:37 | 74.04,-120.34 | 51.00 | 1.19 | 12 |
| 24 | 07/01/2022 | 20:31:33 | -74.01, 47.04 | 129.03 | 07/01/2022 | 20:31:20 | -74.04, 46.97 | 129.01 | 3.25 | 13 |
| 25 | 07/01/2022 | 21:22:20 | 74.02,-145.66 | 50.97 | 07/01/2022 | 21:21:59 | 74.02,-145.73 | 50.98 | 2.29 | 21 |
| 26 | 07/01/2022 | 22:13:05 | -74.05, 21.58 | 128.99 | 07/01/2022 | 22:12:42 | -74.01, 21.58 | 129.02 | 3.46 | 23 |
| 27 | 07/01/2022 | 23:03:51 | 74.05,-171.12 | 51.01 | 07/01/2022 | 23:03:19 | 74.05,-171.00 | 51.02 | 3.66 | 32 |
| 28 | 07/01/2022 | 23:54:35 | -74.03, -3.76 | 129.01 | 07/01/2022 | 23:54:02 | -74.04, -3.69 | 128.99 | 2.61 | 33 |
| 29 | 07/02/2022 | 00:45:22 | 74.03, 163.54 | 51.00 | 07/02/2022 | 00:44:41 | 74.03, 163.61 | 51.00 | 2.06 | 41 |
| 30 | 07/02/2022 | 01:36:06 | -74.01, -29.10 | 129.02 | 07/02/2022 | 01:35:24 | -74.02, -29.08 | 129.00 | 1.26 | 42 |
| 31 | 07/02/2022 | 02:26:53 | 74.01, 138.20 | 50.99 | 07/02/2022 | 02:26:03 | 74.01, 138.22 | 50.99 | 0.78 | 50 |
| 32 | 07/02/2022 | 03:17:37 | -74.00, -54.44 | 129.03 | 07/02/2022 | 03:16:46 | -74.00, -54.47 | 129.02 | 1.33 | 51 |
| 33 | 07/02/2022 | 04:08:24 | 74.00, 112.86 | 50.97 | 07/02/2022 | 04:07:25 | 73.99, 112.83 | 50.98 | 1.57 | 59 |
| 34 | 07/02/2022 | 04:59:08 | -73.98, -79.78 | 129.05 | 07/02/2022 | 04:58:08 | -73.98, -79.86 | 129.03 | 2.71 | 60 |
| 35 | 07/02/2022 | 05:49:55 | 73.98, 87.53 | 50.96 | 07/02/2022 | 05:48:47 | 73.97, 87.44 | 50.96 | 3.13 | 68 |
| 36 | 07/02/2022 | 06:40:40 | -74.01,-105.24 | 129.01 | 07/02/2022 | 06:39:29 | -74.01,-105.13 | 129.00 | 3.15 | 71 |
| 37 | 07/02/2022 | 07:31:24 | 73.87, 62.43 | 50.84 | 07/02/2022 | 07:30:11 | 73.85, 61.81 | 50.86 | 19.35 | 73 |
| 38 | 07/02/2022 | 08:22:07 | -73.80,-130.09 | 129.23 | 07/02/2022 | 08:20:54 | -73.84,-130.88 | 129.15 | 24.90 | 73 |
| 39 | 07/02/2022 | 09:12:48 | 73.50, 37.92 | 50.46 | 07/02/2022 | 09:11:40 | 73.48, 35.61 | 50.53 | 73.06 | 68 |
| 40 | 07/02/2022 | 10:03:31 | -73.44,-154.62 | 129.61 | 07/02/2022 | 10:02:24 | -73.42,-157.19 | 129.52 | 81.69 | 67 |

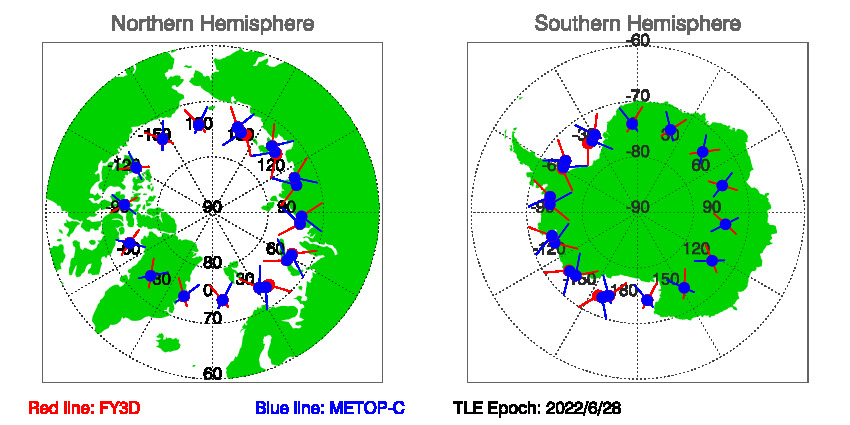

Figure of FY3D and METOP-C satellite orbits during SNOs since TLE Epoch: 6/28/2022
Download SNOs between FY3D and METOP-C since TLE EPOCH: 06/28/2022 in txt file.
Historial Predications of SNOs between FY3D and METOP-C
