Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/20/2024
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 09/22/2024 | 11:52:56 | -74.78,-173.33 | 105.21 | 09/22/2024 | 11:53:29 | -74.80,-173.38 | 105.19 | 3.16 | 33 |
| 2 | 09/22/2024 | 12:43:41 | 74.74, -5.90 | 74.77 | 09/22/2024 | 12:42:56 | 74.73, -5.94 | 74.75 | 1.77 | 45 |
| 3 | 09/25/2024 | 03:19:26 | 74.84, 134.93 | 75.89 | 09/25/2024 | 03:20:28 | 74.82, 134.91 | 75.87 | 3.04 | 62 |
| 4 | 09/25/2024 | 04:10:09 | -74.76, -57.53 | 104.17 | 09/25/2024 | 04:09:57 | -74.75, -57.63 | 104.20 | 3.53 | 12 |
| 5 | 09/27/2024 | 19:36:38 | 74.80,-109.21 | 76.91 | 09/27/2024 | 19:36:54 | 74.80,-109.23 | 76.91 | 0.68 | 16 |
| 6 | 09/27/2024 | 20:27:22 | -74.77, 58.21 | 103.12 | 09/27/2024 | 20:26:23 | -74.74, 58.24 | 103.16 | 3.46 | 59 |
| 7 | 09/30/2024 | 11:03:06 | -74.85,-160.90 | 102.02 | 09/30/2024 | 11:03:53 | -74.83,-160.92 | 102.04 | 2.86 | 47 |
| 8 | 09/30/2024 | 11:53:50 | 74.78, 6.62 | 77.93 | 09/30/2024 | 11:53:19 | 74.79, 6.63 | 77.94 | 0.87 | 31 |
| 9 | 10/03/2024 | 02:29:35 | 74.98, 147.16 | 79.13 | 10/03/2024 | 02:30:46 | 74.92, 147.61 | 79.10 | 14.35 | 71 |
| 10 | 10/03/2024 | 03:20:16 | -74.79, -44.97 | 101.03 | 10/03/2024 | 03:20:16 | -74.81, -45.05 | 101.02 | 2.96 | 0 |

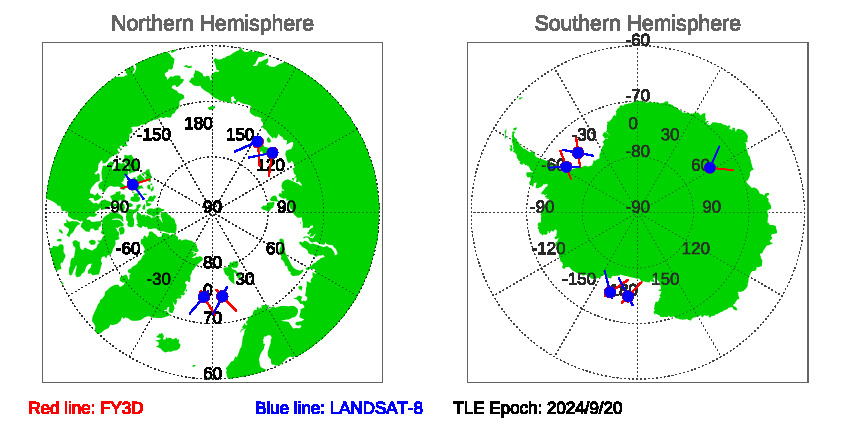

Figure of FY3D and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 9/20/2024
Download SNOs between FY3D and LANDSAT-8 since TLE EPOCH: 09/20/2024 in txt file.
Historial Predications of SNOs between FY3D and LANDSAT-8
