Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/11/2022
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 06/12/2022 | 10:21:34 | 71.91, 23.76 | 48.65 | 06/12/2022 | 10:21:55 | 71.92, 23.72 | 48.65 | 1.55 | 21 |
| 2 | 06/12/2022 | 11:12:17 | -71.81,-168.76 | 131.45 | 06/12/2022 | 11:11:25 | -71.80,-168.85 | 131.47 | 3.63 | 52 |
| 3 | 06/15/2022 | 01:48:38 | -71.91, -28.00 | 131.49 | 06/15/2022 | 01:49:00 | -71.94, -28.00 | 131.46 | 3.13 | 22 |
| 4 | 06/15/2022 | 02:39:23 | 71.83, 139.46 | 48.43 | 06/15/2022 | 02:38:27 | 71.85, 139.48 | 48.45 | 2.06 | 56 |
| 5 | 06/17/2022 | 17:15:44 | 71.93, -79.78 | 48.44 | 06/17/2022 | 17:16:03 | 71.92, -79.79 | 48.44 | 0.72 | 19 |
| 6 | 06/17/2022 | 18:06:27 | -71.84, 87.70 | 131.65 | 06/17/2022 | 18:05:32 | -71.87, 87.75 | 131.63 | 3.04 | 55 |
| 7 | 06/20/2022 | 07:52:20 | 72.80, 59.43 | 49.29 | 06/20/2022 | 07:53:26 | 72.68, 62.20 | 49.15 | 92.34 | 66 |
| 8 | 06/20/2022 | 08:42:48 | -71.95,-131.56 | 131.58 | 06/20/2022 | 08:43:08 | -71.93,-131.53 | 131.60 | 1.64 | 20 |
| 9 | 06/20/2022 | 09:33:33 | 71.86, 35.91 | 48.33 | 06/20/2022 | 09:32:35 | 71.83, 35.94 | 48.31 | 3.15 | 58 |
| 10 | 06/22/2022 | 23:19:25 | -72.87, 7.54 | 130.63 | 06/22/2022 | 23:20:30 | -72.74, 10.54 | 130.79 | 99.67 | 65 |
| 11 | 06/23/2022 | 00:09:53 | 71.92, 176.75 | 48.40 | 06/23/2022 | 00:10:10 | 71.95, 176.73 | 48.42 | 3.05 | 17 |
| 12 | 06/23/2022 | 01:00:35 | -71.84, -15.78 | 131.69 | 06/23/2022 | 00:59:39 | -71.84, -15.82 | 131.69 | 1.61 | 56 |

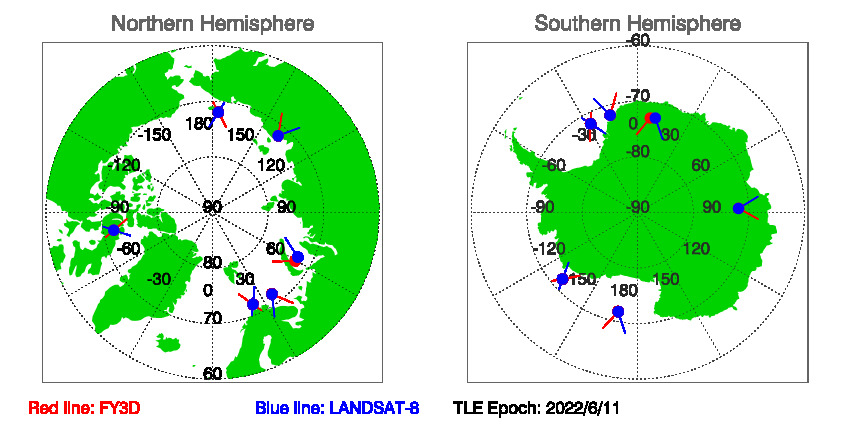

Figure of FY3D and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 6/11/2022
Download SNOs between FY3D and LANDSAT-8 since TLE EPOCH: 06/11/2022 in txt file.
Historial Predications of SNOs between FY3D and LANDSAT-8
