Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/19/2021
Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
1 | 07/20/2021 | 16:00:34 | -71.92, 116.45 | 128.63 | 07/20/2021 | 16:01:42 | -71.82, 118.61 | 128.79 | 75.34 | 68 |
2 | 07/20/2021 | 16:51:04 | 71.13, -74.82 | 50.56 | 07/20/2021 | 16:51:20 | 71.13, -74.89 | 50.55 | 2.41 | 16 |
3 | 07/20/2021 | 17:41:46 | -71.04, 92.65 | 129.54 | 07/20/2021 | 17:40:49 | -71.07, 92.65 | 129.51 | 2.87 | 57 |
4 | 07/23/2021 | 09:07:23 | 71.16, 41.08 | 51.12 | 07/23/2021 | 09:07:50 | 71.16, 41.04 | 51.11 | 1.11 | 27 |
5 | 07/23/2021 | 09:58:05 | -71.06,-151.44 | 128.98 | 07/23/2021 | 09:57:20 | -71.05,-151.50 | 128.99 | 2.46 | 45 |
6 | 07/26/2021 | 01:23:42 | 71.19, 156.97 | 51.72 | 07/26/2021 | 01:24:20 | 71.19, 156.97 | 51.72 | 0.18 | 38 |
7 | 07/26/2021 | 02:14:24 | -71.09, -35.54 | 128.38 | 07/26/2021 | 02:13:50 | -71.08, -35.57 | 128.38 | 1.08 | 34 |
8 | 07/28/2021 | 17:40:00 | 71.22, -87.14 | 52.36 | 07/28/2021 | 17:40:49 | 71.22, -87.11 | 52.35 | 0.94 | 49 |
9 | 07/28/2021 | 18:30:42 | -71.11, 80.36 | 127.74 | 07/28/2021 | 18:30:19 | -71.11, 80.36 | 127.74 | 0.28 | 23 |
10 | 07/31/2021 | 09:56:19 | 71.25, 28.75 | 53.04 | 07/31/2021 | 09:57:19 | 71.24, 28.80 | 53.02 | 2.06 | 60 |
11 | 07/31/2021 | 10:47:01 | -71.14,-163.74 | 127.07 | 07/31/2021 | 10:46:49 | -71.14,-163.72 | 127.07 | 0.67 | 12 |

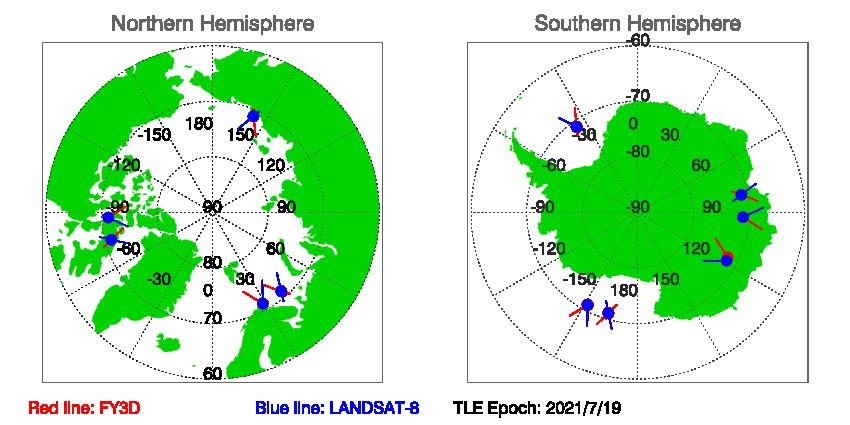

Figure of FY3D and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 7/19/2021
Download SNOs between FY3D and LANDSAT-8 since TLE EPOCH: 07/19/2021 in txt file.
Historial Predications of SNOs between FY3D and LANDSAT-8
