Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/28/2020
Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
1 | 11/29/2020 | 08:42:53 | 70.71, 46.50 | 92.19 | 11/29/2020 | 08:43:36 | 70.74, 46.51 | 92.21 | 2.54 | 43 |
2 | 11/29/2020 | 09:33:35 | -70.62,-146.03 | 87.91 | 11/29/2020 | 09:33:06 | -70.62,-146.03 | 87.91 | 0.56 | 29 |
3 | 12/02/2020 | 00:59:15 | 70.74, 162.38 | 92.63 | 12/02/2020 | 01:00:05 | 70.76, 162.42 | 92.65 | 2.70 | 50 |
4 | 12/02/2020 | 01:49:57 | -70.64, -30.14 | 87.47 | 12/02/2020 | 01:49:35 | -70.65, -30.11 | 87.47 | 1.42 | 22 |
5 | 12/02/2020 | 02:40:23 | 69.63, 138.73 | 91.53 | 12/02/2020 | 02:39:17 | 69.72, 136.20 | 91.62 | 98.39 | 66 |
6 | 12/04/2020 | 17:15:37 | 70.76, -81.74 | 93.02 | 12/04/2020 | 17:16:34 | 70.77, -81.68 | 93.03 | 2.48 | 57 |
7 | 12/04/2020 | 18:06:19 | -70.66, 85.74 | 87.08 | 12/04/2020 | 18:06:04 | -70.67, 85.79 | 87.08 | 1.97 | 15 |
8 | 12/04/2020 | 18:56:50 | 69.92,-105.78 | 92.19 | 12/04/2020 | 18:55:42 | 69.95,-107.60 | 92.22 | 69.43 | 68 |
9 | 12/07/2020 | 09:31:59 | 70.79, 34.13 | 93.37 | 12/07/2020 | 09:33:03 | 70.78, 34.21 | 93.35 | 3.32 | 64 |
10 | 12/07/2020 | 10:22:41 | -70.69,-158.38 | 86.74 | 12/07/2020 | 10:22:33 | -70.68,-158.31 | 86.76 | 3.31 | 8 |
11 | 12/07/2020 | 11:13:17 | 70.22, 9.69 | 92.79 | 12/07/2020 | 11:12:06 | 70.24, 8.69 | 92.82 | 38.00 | 71 |
12 | 12/10/2020 | 01:48:20 | 70.83, 150.00 | 93.66 | 12/10/2020 | 01:49:31 | 70.78, 150.10 | 93.61 | 6.10 | 71 |
13 | 12/10/2020 | 02:39:01 | -70.67, -42.43 | 86.49 | 12/10/2020 | 02:39:01 | -70.68, -42.42 | 86.49 | 0.65 | 0 |
14 | 12/10/2020 | 03:29:42 | 70.46, 125.23 | 93.30 | 12/10/2020 | 03:28:29 | 70.51, 124.97 | 93.35 | 11.44 | 73 |

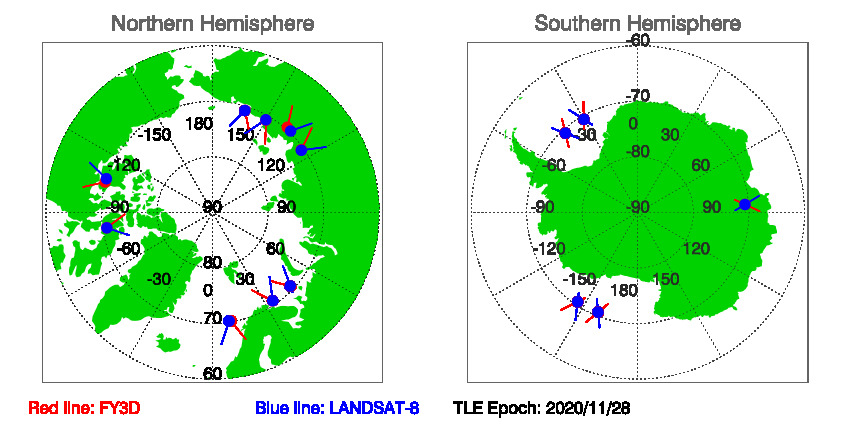

Figure of FY3D and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 11/28/2020
Download SNOs between FY3D and LANDSAT-8 since TLE EPOCH: 11/28/2020 in txt file.
Historical Predications of SNOs between FY3D and LANDSAT-8
