Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between FY3D and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/20/2025
Index Date (FY3D) Time (FY3D) Lat,Lon (FY3D) SZA (FY3D ) Date (AQUA) Time (AQUA) Lat,Lon (AQUA) SZA (AQUA ) Distance(km) Time Diff (sec)
1 08/22/2025 18:19:57 79.55,-105.13 68.18 08/22/2025 18:20:32 79.55,-105.10 68.18 0.61 35
2 08/22/2025 19:10:31 -79.24, 64.88 112.20 08/22/2025 19:09:41 -79.25, 64.73 112.19 3.09 50
3 08/25/2025 03:50:40 79.57, 112.07 69.02 08/25/2025 03:51:17 79.56, 112.19 69.00 2.54 37
4 08/25/2025 04:41:15 -79.29, -78.17 111.33 08/25/2025 04:40:27 -79.29, -78.21 111.32 1.08 48
5 08/27/2025 13:21:22 79.56, -30.47 69.84 08/27/2025 13:22:01 79.56, -30.40 69.83 1.37 39
6 08/27/2025 14:11:57 -79.28, 139.30 110.51 08/27/2025 14:11:11 -79.29, 139.20 110.49 2.23 46
7 08/29/2025 22:52:02 79.50,-172.47 70.59 08/29/2025 22:52:43 79.50,-172.61 70.60 2.95 41
8 08/29/2025 23:42:40 -79.31, -3.51 109.63 08/29/2025 23:41:55 -79.31, -3.52 109.63 0.20 45
9 09/01/2025 08:22:47 79.58, 44.10 71.56 09/01/2025 08:23:28 79.58, 44.22 71.55 2.48 41
10 09/01/2025 09:13:22 -79.30,-146.08 108.78 09/01/2025 09:12:38 -79.31,-146.14 108.77 1.20 44
11 09/03/2025 17:53:27 79.52, -97.94 72.35 09/03/2025 17:54:09 79.53, -98.02 72.35 1.70 42

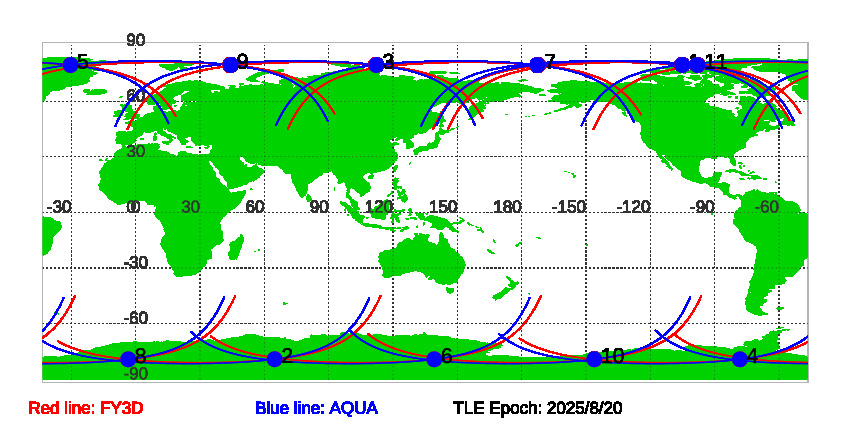

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 8/20/2025

Download SNOs between FY3D and AQUA since TLE EPOCH: 08/20/2025 in txt file.

Historial Predications of SNOs between FY3D and AQUA
