Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between FY3D and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/24/2025
Index Date (FY3D) Time (FY3D) Lat,Lon (FY3D) SZA (FY3D ) Date (AQUA) Time (AQUA) Lat,Lon (AQUA) SZA (AQUA ) Distance(km) Time Diff (sec)
1 07/24/2025 23:20:43 -79.56, -1.19 119.87 07/24/2025 23:21:32 -79.56, -1.19 119.88 0.35 49
2 07/25/2025 00:11:22 79.37, 167.81 59.89 07/25/2025 00:10:45 79.37, 167.89 59.88 1.78 37
3 07/27/2025 08:51:24 -79.58,-143.94 119.32 07/27/2025 08:52:24 -79.58,-144.01 119.33 1.36 60
4 07/27/2025 09:42:03 79.39, 25.07 60.44 07/27/2025 09:41:37 79.39, 25.06 60.44 0.17 26
5 07/29/2025 18:22:07 -79.63, 73.00 118.70 07/29/2025 18:23:17 -79.63, 73.01 118.71 0.23 70
6 07/29/2025 19:12:46 79.44,-117.98 61.06 07/29/2025 19:12:30 79.44,-117.93 61.06 1.09 16
7 08/01/2025 04:43:27 79.43, 99.50 61.64 08/01/2025 04:43:21 79.44, 99.45 61.64 1.11 6
8 08/03/2025 14:14:09 79.45, -43.32 62.29 08/03/2025 14:14:12 79.45, -43.33 62.28 0.19 3
9 08/05/2025 23:44:50 79.45, 174.12 62.92 08/05/2025 23:45:02 79.46, 174.00 62.93 2.64 12

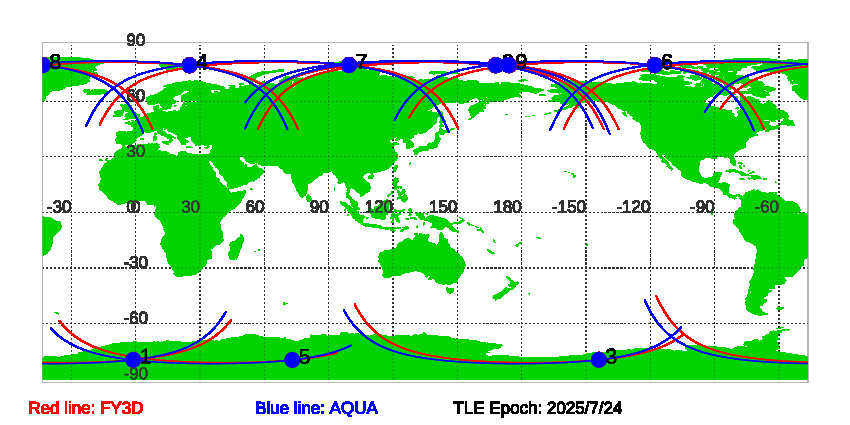

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 7/24/2025

Download SNOs between FY3D and AQUA since TLE EPOCH: 07/24/2025 in txt file.

Historial Predications of SNOs between FY3D and AQUA
