Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between FY3D and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/23/2025
Index Date (FY3D) Time (FY3D) Lat,Lon (FY3D) SZA (FY3D ) Date (AQUA) Time (AQUA) Lat,Lon (AQUA) SZA (AQUA ) Distance(km) Time Diff (sec)
1 07/24/2025 23:20:43 -79.58, -1.29 119.85 07/24/2025 23:21:32 -79.57, -1.26 119.87 0.87 49
2 07/25/2025 00:11:22 79.39, 167.70 59.91 07/25/2025 00:10:45 79.38, 167.81 59.90 2.35 37
3 07/27/2025 08:51:26 -79.62,-144.33 119.26 07/27/2025 08:52:26 -79.62,-144.31 119.27 0.49 60
4 07/27/2025 09:42:04 79.40, 24.96 60.46 07/27/2025 09:41:38 79.40, 25.03 60.45 1.51 26
5 07/29/2025 18:22:06 -79.58, 73.46 118.76 07/29/2025 18:23:17 -79.59, 73.31 118.76 3.05 71
6 07/29/2025 19:12:45 79.39,-117.53 61.00 07/29/2025 19:12:30 79.40,-117.64 61.01 2.31 15
7 08/01/2025 04:43:27 79.41, 99.68 61.61 08/01/2025 04:43:22 79.42, 99.56 61.63 2.61 5
8 08/03/2025 14:14:09 79.47, -43.41 62.30 08/03/2025 14:14:13 79.46, -43.39 62.29 0.61 4
9 08/05/2025 23:44:51 79.49, 173.75 62.97 08/05/2025 23:45:04 79.49, 173.78 62.97 0.86 13

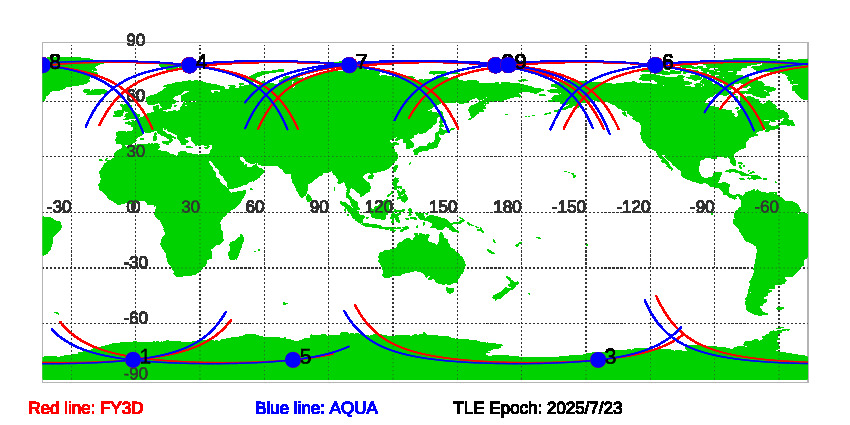

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 7/23/2025

Download SNOs between FY3D and AQUA since TLE EPOCH: 07/23/2025 in txt file.

Historial Predications of SNOs between FY3D and AQUA
