Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/21/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/22/2025 | 13:50:00 | -79.54, 141.64 | 120.40 | 07/22/2025 | 13:50:38 | -79.55, 141.58 | 120.40 | 1.31 | 38 |
| 2 | 07/22/2025 | 14:40:39 | 79.35, -49.39 | 59.36 | 07/22/2025 | 14:39:51 | 79.35, -49.36 | 59.37 | 0.60 | 48 |
| 3 | 07/24/2025 | 23:20:44 | -79.61, -1.65 | 119.80 | 07/24/2025 | 23:21:33 | -79.61, -1.56 | 119.82 | 1.82 | 49 |
| 4 | 07/25/2025 | 00:11:19 | 79.30, 168.44 | 59.79 | 07/25/2025 | 00:10:43 | 79.31, 168.29 | 59.81 | 3.21 | 36 |
| 5 | 07/27/2025 | 08:51:26 | -79.63,-144.39 | 119.25 | 07/27/2025 | 08:52:26 | -79.62,-144.29 | 119.28 | 2.17 | 60 |
| 6 | 07/27/2025 | 09:42:05 | 79.44, 24.62 | 60.51 | 07/27/2025 | 09:41:39 | 79.43, 24.77 | 60.50 | 3.18 | 26 |
| 7 | 07/29/2025 | 18:22:07 | -79.61, 73.14 | 118.72 | 07/29/2025 | 18:23:18 | -79.61, 73.12 | 118.73 | 0.32 | 71 |
| 8 | 07/29/2025 | 19:12:46 | 79.43,-117.86 | 61.05 | 07/29/2025 | 19:12:31 | 79.43,-117.84 | 61.05 | 0.42 | 15 |
| 9 | 08/01/2025 | 04:43:29 | 79.48, 99.10 | 61.70 | 08/01/2025 | 04:43:24 | 79.47, 99.16 | 61.69 | 1.37 | 5 |

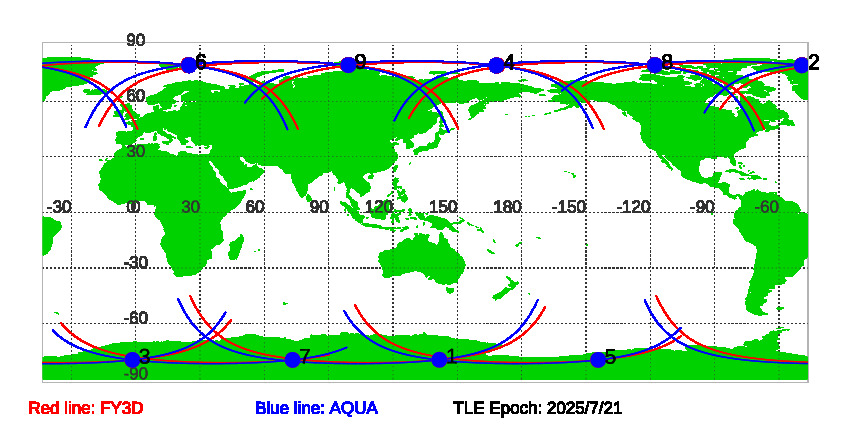

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 7/21/2025
Download SNOs between FY3D and AQUA since TLE EPOCH: 07/21/2025 in txt file.
Historial Predications of SNOs between FY3D and AQUA
