Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between FY3D and AQUA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/18/2025
Index Date (FY3D) Time (FY3D) Lat,Lon (FY3D) SZA (FY3D ) Date (AQUA) Time (AQUA) Lat,Lon (AQUA) SZA (AQUA ) Distance(km) Time Diff (sec)
1 07/20/2025 04:19:18 -79.51, -75.46 120.91 07/20/2025 04:19:44 -79.51, -75.48 120.92 0.34 26
2 07/20/2025 05:09:57 79.32, 93.48 58.85 07/20/2025 05:08:57 79.31, 93.57 58.85 1.85 60
3 07/22/2025 13:50:01 -79.55, 141.56 120.39 07/22/2025 13:50:39 -79.55, 141.55 120.40 0.10 38
4 07/22/2025 14:40:40 79.36, -49.48 59.38 07/22/2025 14:39:52 79.36, -49.41 59.38 1.60 48
5 07/24/2025 23:20:42 -79.53, -0.88 119.91 07/24/2025 23:21:32 -79.54, -1.00 119.92 2.42 50
6 07/25/2025 00:11:21 79.34, 168.07 59.85 07/25/2025 00:10:45 79.35, 168.02 59.86 1.11 36
7 07/27/2025 08:51:25 -79.61,-144.19 119.28 07/27/2025 08:52:26 -79.61,-144.22 119.29 0.80 61
8 07/27/2025 09:42:03 79.39, 25.07 60.44 07/27/2025 09:41:38 79.39, 25.08 60.44 0.20 25
9 07/29/2025 18:22:06 -79.59, 73.33 118.74 07/29/2025 18:23:18 -79.59, 73.25 118.75 1.56 72

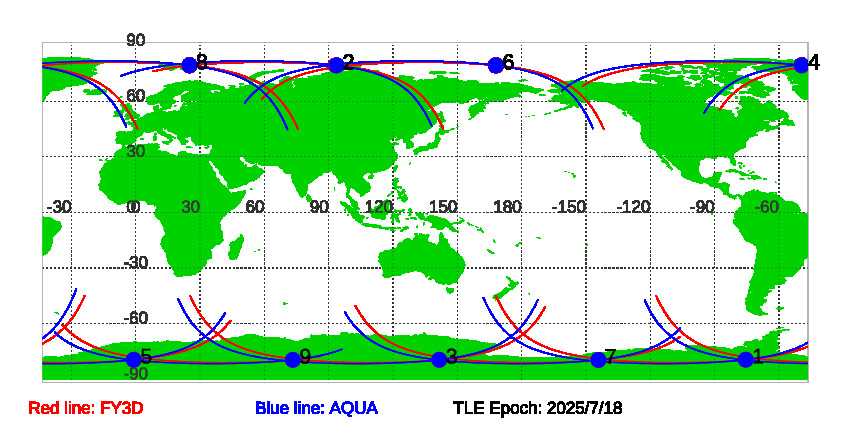

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 7/18/2025

Download SNOs between FY3D and AQUA since TLE EPOCH: 07/18/2025 in txt file.

Historial Predications of SNOs between FY3D and AQUA
