Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/9/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/10/2025 | 13:25:50 | 79.62, -33.33 | 57.71 | 07/10/2025 | 13:26:50 | 79.62, -33.34 | 57.70 | 0.38 | 60 |
| 2 | 07/10/2025 | 14:16:28 | -79.41, 135.88 | 122.58 | 07/10/2025 | 14:16:02 | -79.41, 135.90 | 122.57 | 0.43 | 26 |
| 3 | 07/12/2025 | 22:56:38 | 79.79,-177.69 | 58.29 | 07/12/2025 | 22:57:51 | 79.81,-177.48 | 58.28 | 4.31 | 73 |
| 4 | 07/12/2025 | 23:47:10 | -79.41, -6.74 | 122.25 | 07/12/2025 | 23:46:58 | -79.42, -6.83 | 122.23 | 2.10 | 12 |
| 5 | 07/15/2025 | 09:17:52 | -79.44,-149.64 | 121.83 | 07/15/2025 | 09:17:53 | -79.44,-149.67 | 121.83 | 0.59 | 1 |
| 6 | 07/17/2025 | 18:48:35 | -79.48, 67.43 | 121.39 | 07/17/2025 | 18:48:49 | -79.48, 67.37 | 121.38 | 1.33 | 14 |
| 7 | 07/17/2025 | 19:39:13 | 79.26,-123.42 | 58.34 | 07/17/2025 | 19:38:01 | 79.26,-123.39 | 58.35 | 0.78 | 72 |
| 8 | 07/20/2025 | 04:19:19 | -79.55, -75.79 | 120.86 | 07/20/2025 | 04:19:45 | -79.54, -75.71 | 120.88 | 1.92 | 26 |
| 9 | 07/20/2025 | 05:09:54 | 79.24, 94.19 | 58.74 | 07/20/2025 | 05:08:55 | 79.24, 94.06 | 58.76 | 2.82 | 59 |
| 10 | 07/22/2025 | 13:50:02 | -79.58, 141.24 | 120.34 | 07/22/2025 | 13:50:40 | -79.57, 141.37 | 120.36 | 2.79 | 38 |

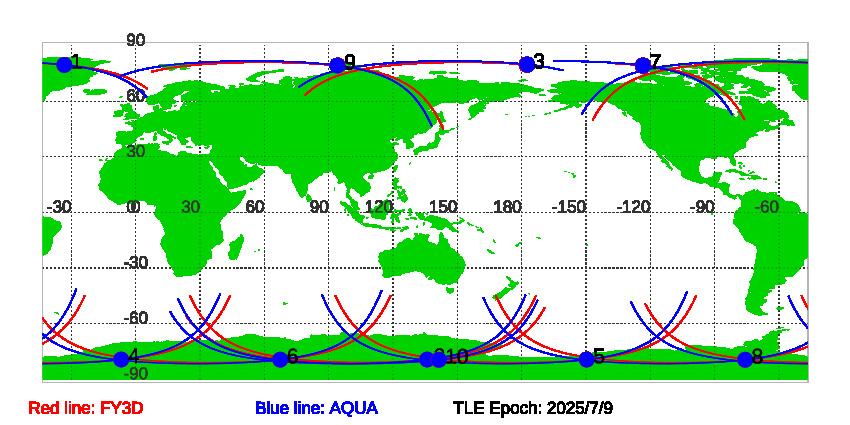

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 7/9/2025
Download SNOs between FY3D and AQUA since TLE EPOCH: 07/09/2025 in txt file.
Historial Predications of SNOs between FY3D and AQUA
