Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/29/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/30/2025 | 23:22:56 | 79.45, 178.67 | 56.52 | 06/30/2025 | 23:22:58 | 79.45, 178.63 | 56.52 | 0.92 | 2 |
| 2 | 07/03/2025 | 08:53:41 | 79.53, 35.30 | 56.82 | 07/03/2025 | 08:53:58 | 79.53, 35.36 | 56.81 | 1.20 | 17 |
| 3 | 07/03/2025 | 09:44:19 | -79.31,-155.47 | 123.48 | 07/03/2025 | 09:43:10 | -79.31,-155.40 | 123.47 | 1.53 | 69 |
| 4 | 07/05/2025 | 18:24:24 | 79.56,-107.52 | 57.07 | 07/05/2025 | 18:24:56 | 79.55,-107.47 | 57.06 | 1.17 | 32 |
| 5 | 07/05/2025 | 19:15:02 | -79.34, 61.71 | 123.22 | 07/05/2025 | 19:14:08 | -79.33, 61.79 | 123.23 | 1.73 | 54 |
| 6 | 07/08/2025 | 03:55:06 | 79.55, 109.91 | 57.32 | 07/08/2025 | 03:55:53 | 79.55, 109.86 | 57.31 | 1.06 | 47 |
| 7 | 07/08/2025 | 04:45:45 | -79.36, -81.12 | 122.93 | 07/08/2025 | 04:45:06 | -79.36, -81.13 | 122.92 | 0.24 | 39 |
| 8 | 07/10/2025 | 13:25:51 | 79.64, -33.51 | 57.73 | 07/10/2025 | 13:26:52 | 79.63, -33.45 | 57.72 | 1.17 | 61 |
| 9 | 07/10/2025 | 14:16:29 | -79.42, 135.76 | 122.56 | 07/10/2025 | 14:16:04 | -79.41, 135.86 | 122.57 | 2.19 | 25 |
| 10 | 07/12/2025 | 22:57:36 | 80.95, 162.53 | 60.79 | 07/12/2025 | 22:58:49 | 81.32, 163.23 | 60.99 | 42.39 | 73 |

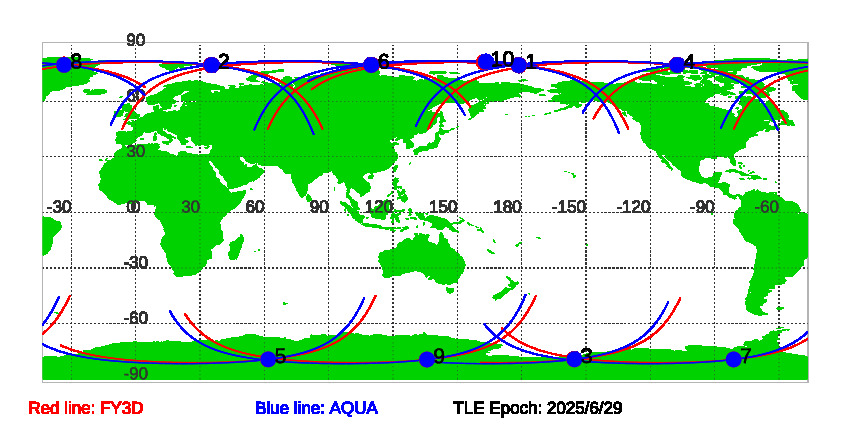

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 6/29/2025
Download SNOs between FY3D and AQUA since TLE EPOCH: 06/29/2025 in txt file.
Historial Predications of SNOs between FY3D and AQUA
