Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/24/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/26/2025 | 03:30:50 | -79.55, -64.36 | 123.59 | 06/26/2025 | 03:31:46 | -79.56, -64.51 | 123.59 | 3.09 | 56 |
| 2 | 06/26/2025 | 04:21:30 | 79.41, 104.21 | 56.22 | 06/26/2025 | 04:21:00 | 79.41, 104.27 | 56.22 | 1.30 | 30 |
| 3 | 06/28/2025 | 13:01:37 | -79.69, 151.73 | 123.30 | 06/28/2025 | 13:02:48 | -79.68, 151.88 | 123.33 | 3.11 | 71 |
| 4 | 06/28/2025 | 13:52:13 | 79.43, -38.57 | 56.35 | 06/28/2025 | 13:51:59 | 79.43, -38.54 | 56.35 | 0.82 | 14 |
| 5 | 06/30/2025 | 23:22:56 | 79.45, 178.64 | 56.52 | 06/30/2025 | 23:22:58 | 79.46, 178.54 | 56.54 | 2.22 | 2 |
| 6 | 07/03/2025 | 08:53:40 | 79.50, 35.56 | 56.78 | 07/03/2025 | 08:53:57 | 79.51, 35.51 | 56.78 | 1.19 | 17 |
| 7 | 07/03/2025 | 09:44:18 | -79.28,-155.20 | 123.52 | 07/03/2025 | 09:43:09 | -79.28,-155.23 | 123.50 | 0.73 | 69 |
| 8 | 07/05/2025 | 18:24:22 | 79.50,-106.98 | 56.99 | 07/05/2025 | 18:24:54 | 79.50,-107.11 | 56.99 | 2.54 | 32 |
| 9 | 07/05/2025 | 19:15:00 | -79.27, 62.26 | 123.31 | 07/05/2025 | 19:14:06 | -79.27, 62.17 | 123.30 | 1.86 | 54 |
| 10 | 07/08/2025 | 03:55:07 | 79.58, 109.62 | 57.36 | 07/08/2025 | 03:55:53 | 79.58, 109.62 | 57.35 | 0.12 | 46 |

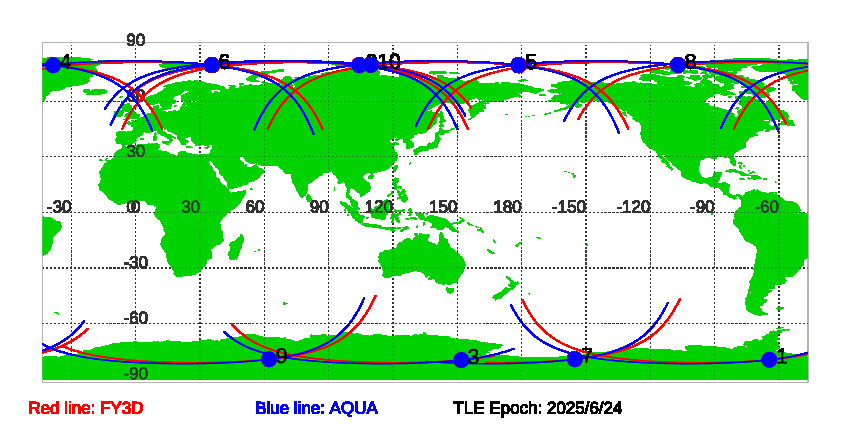

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 6/24/2025
Download SNOs between FY3D and AQUA since TLE EPOCH: 06/24/2025 in txt file.
Historial Predications of SNOs between FY3D and AQUA
